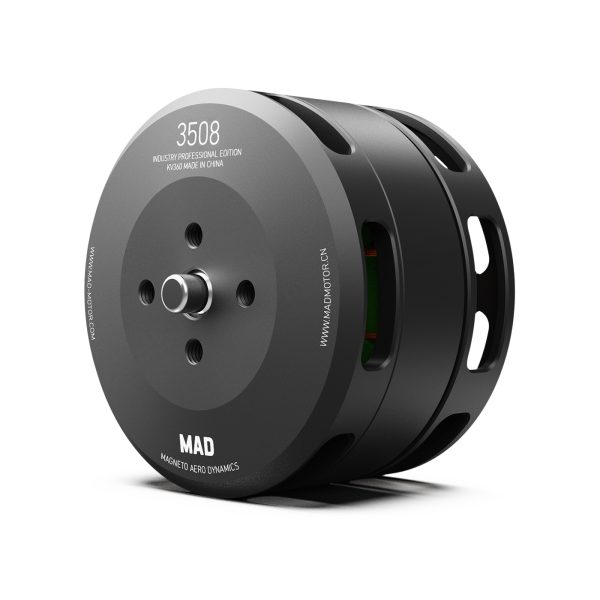

3508 IPE Drone Motor 360KV/580KV/700KV

Scroll to switch images

28/35/40 series

3508 IPE Drone Motor 360KV/580KV/700KV

5.0 · 1 reviews In stock

SKU: 0101DJ0661

3508 IPE drone motor offers 360KV/580KV/700KV options for UAV propulsion; specify the selected KV version when requesting this model.

Price range: $62.00 through $109.00

KV Option
packing way

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

3508 IPE Drone Motor Overview

The MAD 3508 IPE V1.0 is listed for 490–760 g single-rotor payloads, 13–16 inch carbon-fiber propellers and up to 1,800 g thrust per axis.

Technical Specifications

KV options 360KV / 580KV / 700KV

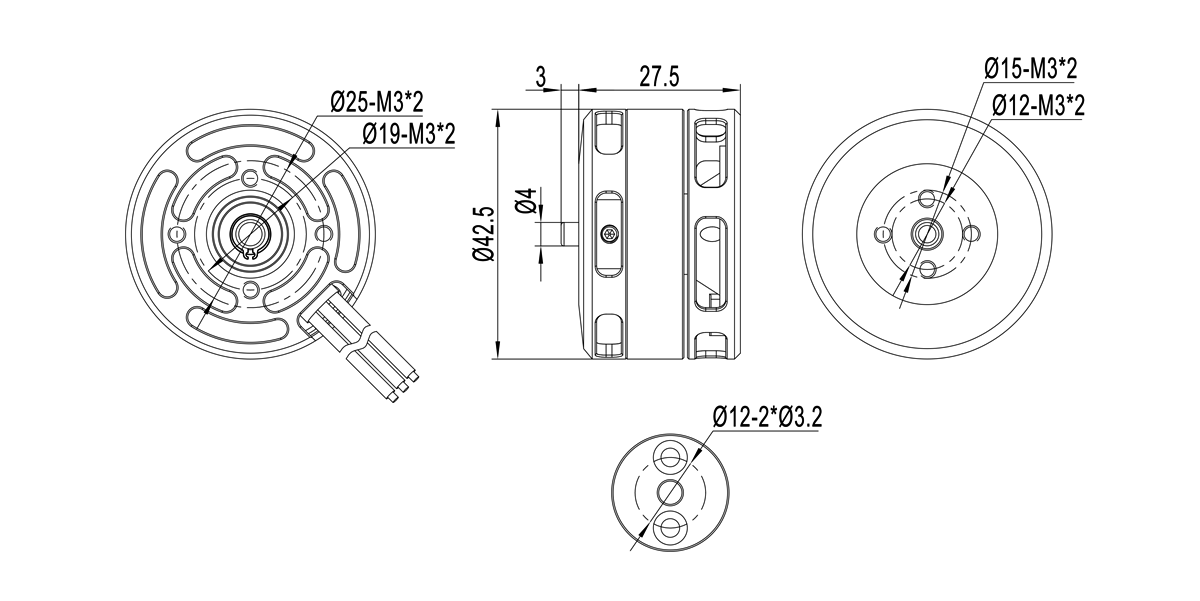

Motor size D42.5 × 30.5 mm
Weight 99 g
Protection IP35
Shaft 15 mm
Mounting D19 M3×2; D25 M3×2
Propeller mounting D12 M3×2; D15 M3×2
Maximum thrust 1,800 g per axis

Selection and Compatibility

The 13–16 inch propeller range and 490–760 g payload data distinguish this model from the smaller 3506 IPE. Confirm KV, battery, propeller and ESC compatibility before purchase.

FAQ

Which propeller range is listed? The product data lists 13–16 inch carbon-fiber propellers. Confirm hub and mounting dimensions for the selected propeller.

Request a Quote

Provide the selected KV, battery, propeller, ESC and quantity for a matched propulsion quotation.

Specifications

KV Option 360KV / 580KV / 700KV
packing way 1pc / 2pcs
Weight N/A
Product FAQ
What is the 3508 IPE Drone Motor 360KV/580KV/700KV intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the 3508 IPE Drone Motor 360KV/580KV/700KV?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the 3508 IPE Drone Motor 360KV/580KV/700KV be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $1,942.50

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the 3508 IPE Drone Motor 360KV/580KV/700KV into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the 3508 IPE Drone Motor 360KV/580KV/700KV. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the 3508 IPE Drone Motor 360KV/580KV/700KV. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.

View all 28/35/40 series

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
