4014 EEE Drone Motor 370KV/400KV

Scroll to switch images

28/35/40 series

4014 EEE Drone Motor 370KV/400KV

5.0 · 2 reviews In stock

SKU: 0101DJ0075

MAD 40 Series motors are the classical UAV motors for small to medium industrial use, efficient and for endurance flight. These sizes of motors have been releasing in the market for 10years, MAD Components optimized them to be very lightweight design. ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance. Open body design for better passive.

Price range: $89.00 through $169.00

KV Option
packing way

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

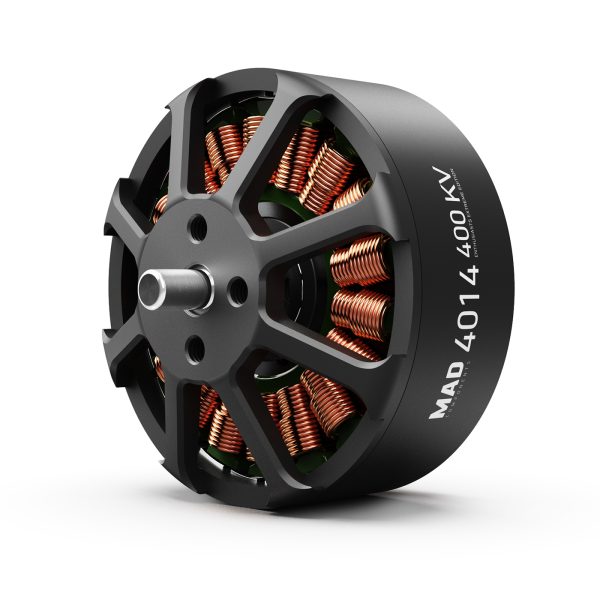

4014 EEE Drone Motor Overview

The MAD 4014 EEE V1.0 is listed for 950–1,600 g payload per rotor, 15–17 inch carbon-fiber propellers and up to 3,400 g thrust per rotor.

Technical Specifications

KV options 370KV / 400KV

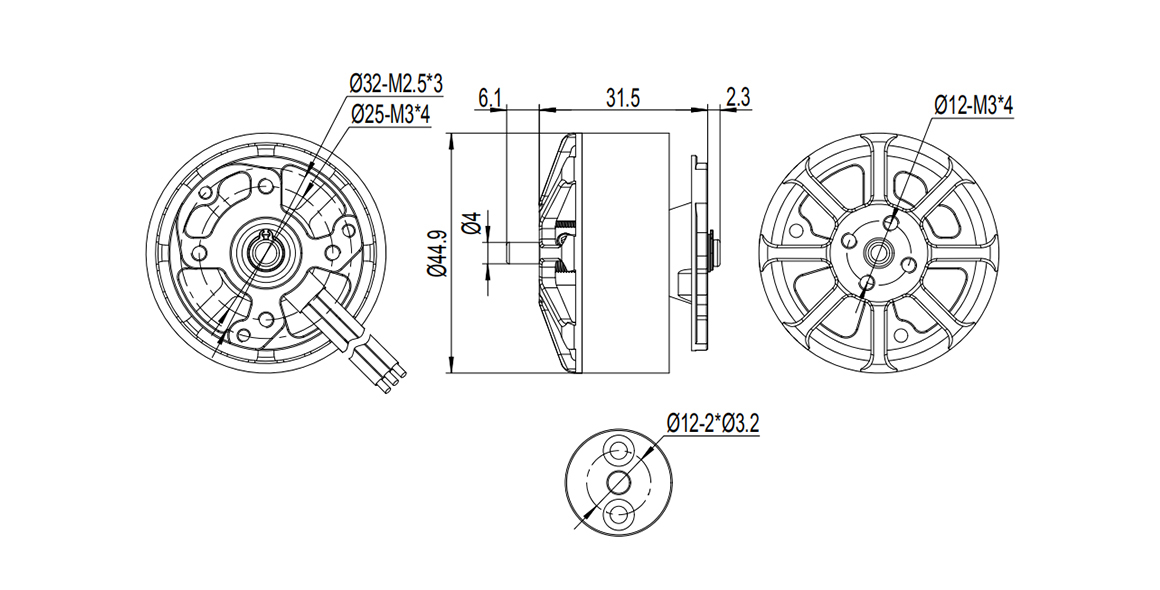

Motor size D44.9 × 39.9 mm
Weight 143 g
Protection Rain protection
Shaft 4 mm
Mounting D25 M3×4; D32 M2.5×3
Maximum thrust 3,400 g per rotor

Selection and Compatibility

The 15–17 inch propeller range and 950–1,600 g payload data distinguish this 4014 EEE from the smaller 4012 family. Confirm battery, propeller and ESC compatibility.

FAQ

Which KV versions are listed? The product lists 370KV and 400KV. Select only after checking the aircraft voltage and propeller.

Request a Quote

Send the selected KV, battery, propeller, ESC and quantity for quotation.

Specifications

KV Option 370KV / 400KV
packing way 1PC / 2PCS
Weight N/A
Product FAQ
What is the 4014 EEE Drone Motor 370KV/400KV intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the 4014 EEE Drone Motor 370KV/400KV?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the 4014 EEE Drone Motor 370KV/400KV be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $1,171.80

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the 4014 EEE Drone Motor 370KV/400KV into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the 4014 EEE Drone Motor 370KV/400KV. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the 4014 EEE Drone Motor 370KV/400KV. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.

View all 28/35/40 series

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
