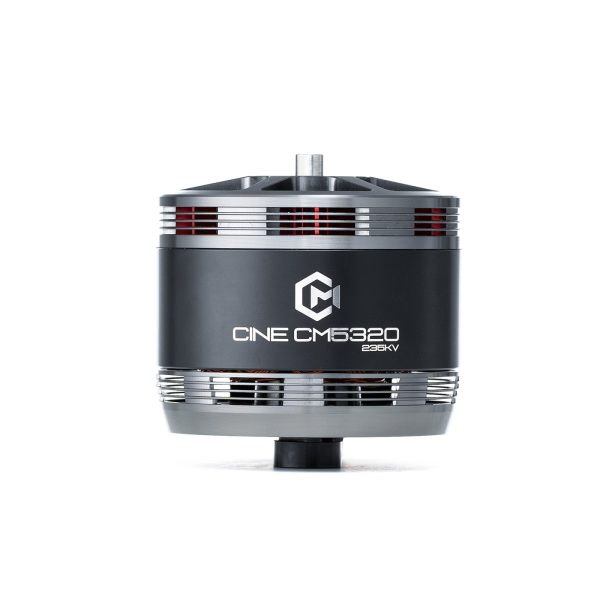

CM 5320 CINE FPV Motor

Scroll to switch images

CM Series - Cinematic

CM 5320 CINE FPV Motor

5.0 · 3 reviews In stock

SKU: 0101DJ1513

MAD CINE CM5320 V1.0 with 235KV/360KV/400KV option(s), D:63 × 64 mm size, 10 mm shaft and D:30 M4×4; D:44 M4×4 mounting.

$140.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

MAD CINE CM5320 V1.0 FPV Motor

The CM5320 V1.0 is listed with 235KV, 360KV and 400KV options, a D63 × 64mm motor body and a 10mm shaft for cinematic FPV propulsion systems.

Technical Specifications

Motor model MAD CINE CM5320 V1.0
KV options 235KV / 360KV / 400KV
Number of pole pairs 7
Stator Anticorrosive
Varnished wire temperature rating 180°C

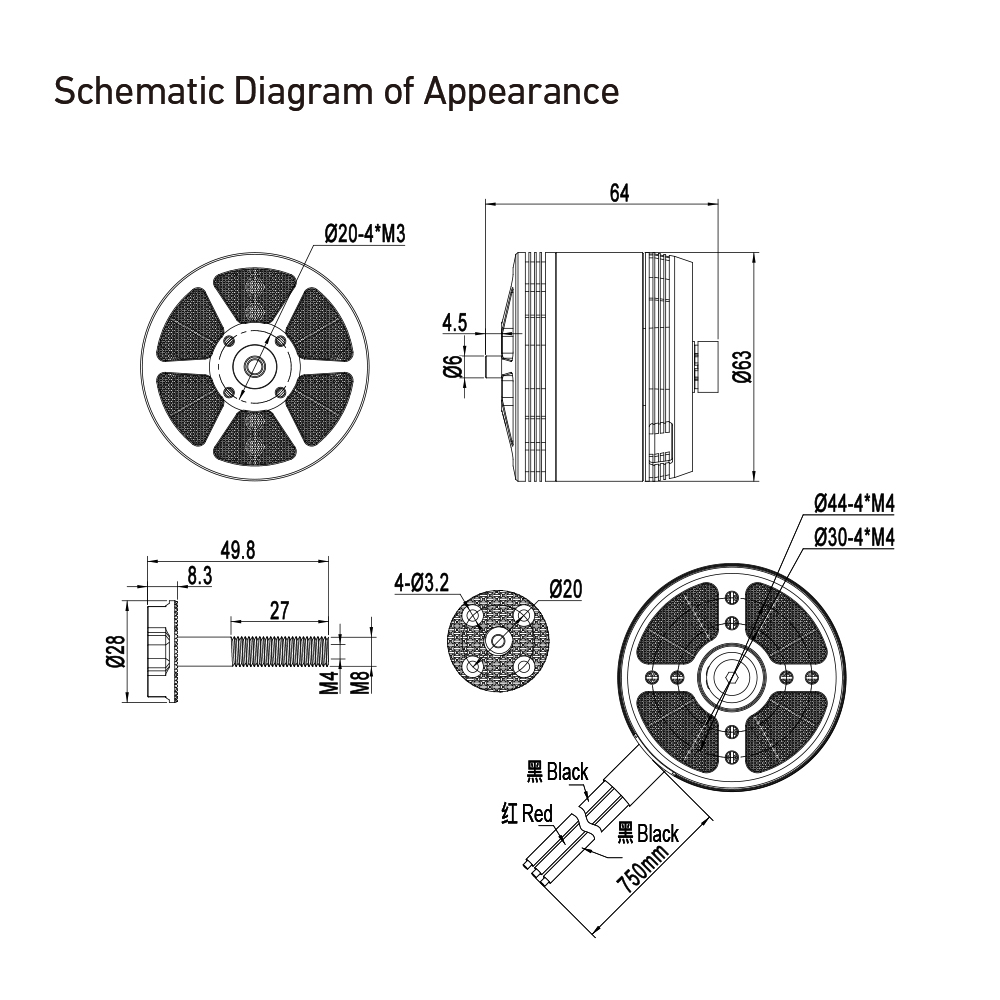

Motor size D:63 × 64mm
Magnet temperature rating 150°C
Protection IP45
Cable 750mm, 14 AWG black/red silicone wire
Centrifugal heat dissipation Yes
Rotor balance ≤5mg
Propeller mounting holes D:20 M3×4
Motor balance ≤10mg
Shaft diameter 10mm
Motor mounting holes D:30 M4×4; D:44 M4×4
Bearing EZO 6800 × 4
Disruptive test 500V
Included accessories Prop adapters ×2, propeller plates ×2, 4.0mm bullet connectors ×3, heat-shrink tubes ×3, M4×12 motor screws ×4, M3×8 prop-adapter fixing screws ×4, M3×18 propeller screws ×2, M8 nut ×1, sticker ×1

Selection and Ordering

Select the KV option with the matching battery, propeller, controller and frame clearance. Send the selected KV, aircraft, propeller, battery, ESC and quantity for a quotation.

Specifications

KV OPTION 235KV / 360KV / 400KV
Weight N/A
Product FAQ
What is the CM 5320 CINE FPV Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the CM 5320 CINE FPV Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the CM 5320 CINE FPV Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $386.38

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the CM 5320 CINE FPV Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the CM 5320 CINE FPV Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the CM 5320 CINE FPV Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
