BSC 3110 FPV drone motor

Scroll to switch images

BSC Series - Basic

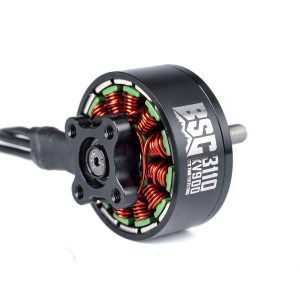

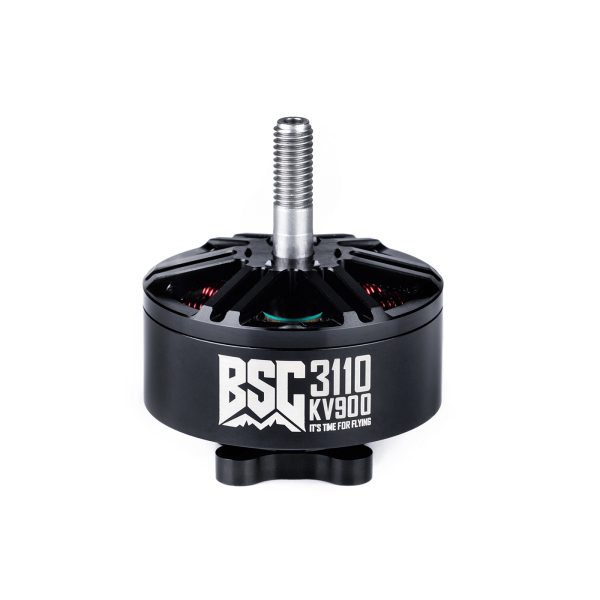

BSC 3110 FPV drone motor

5.0 · 3 reviews In stock

SKU: 0101DJ1471

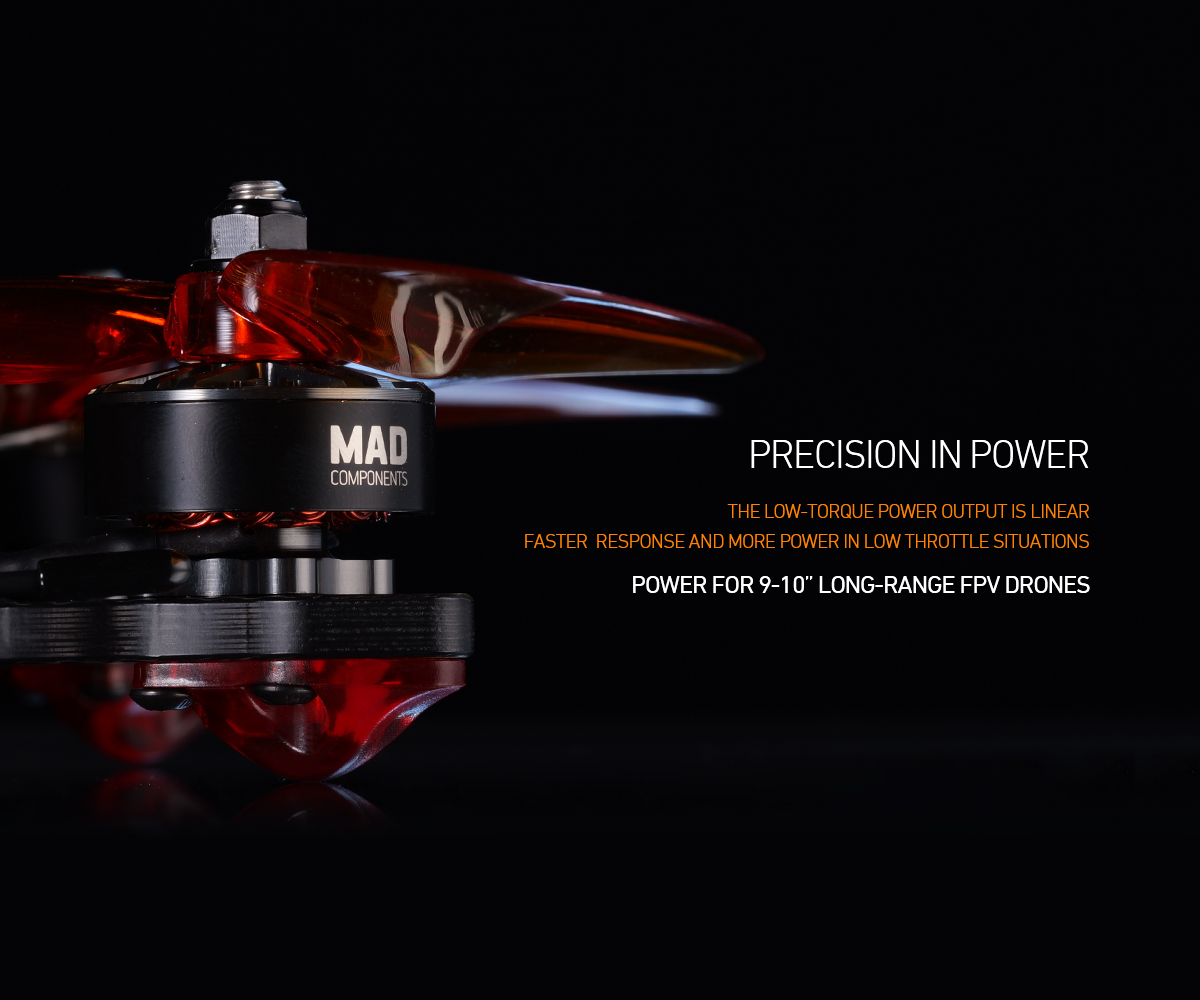

BSC 3110 FPV Drone Motor is designed for long-range FPV pilots and cinematic drone builders who require efficient power delivery, reliable performance, and stable thrust output. Featuring a 3110 stator size, optimized 12N14P electromagnetic design, and precision-balanced construction, it provides smooth throttle response, strong torque, and excellent efficiency for larger FPV platforms.

Price range: $17.00 through $34.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

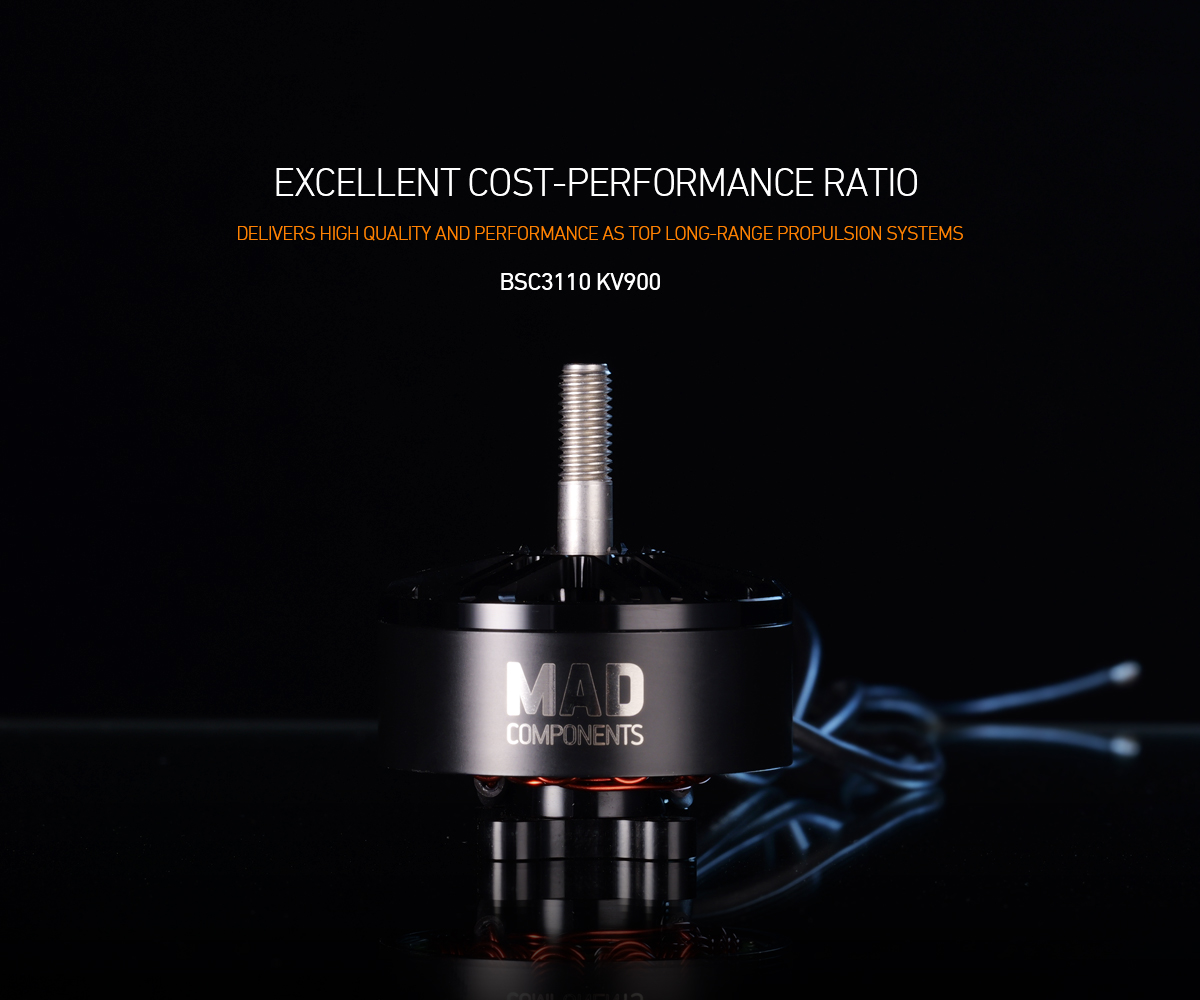

MAD BSC 3110 V1.0 FPV Motor

The BSC 3110 is listed with a 900KV 6S configuration, a 37.1 × 43.9mm body and 5mm shaft for larger FPV propulsion systems.

Technical Specifications

Motor model MAD BSC3110 V1.0
KV / battery 900KV / 6S

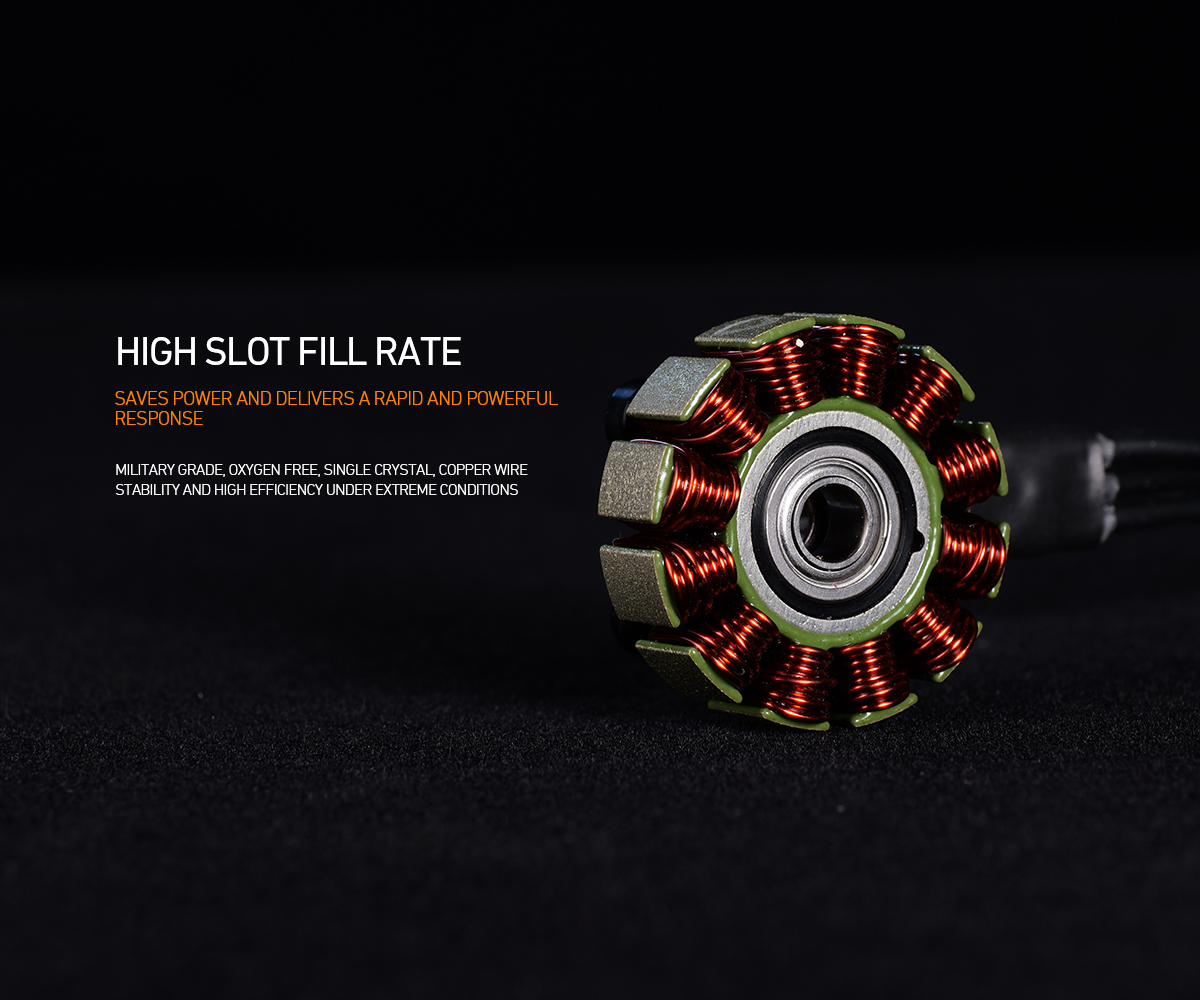

Slots / poles 12N14P

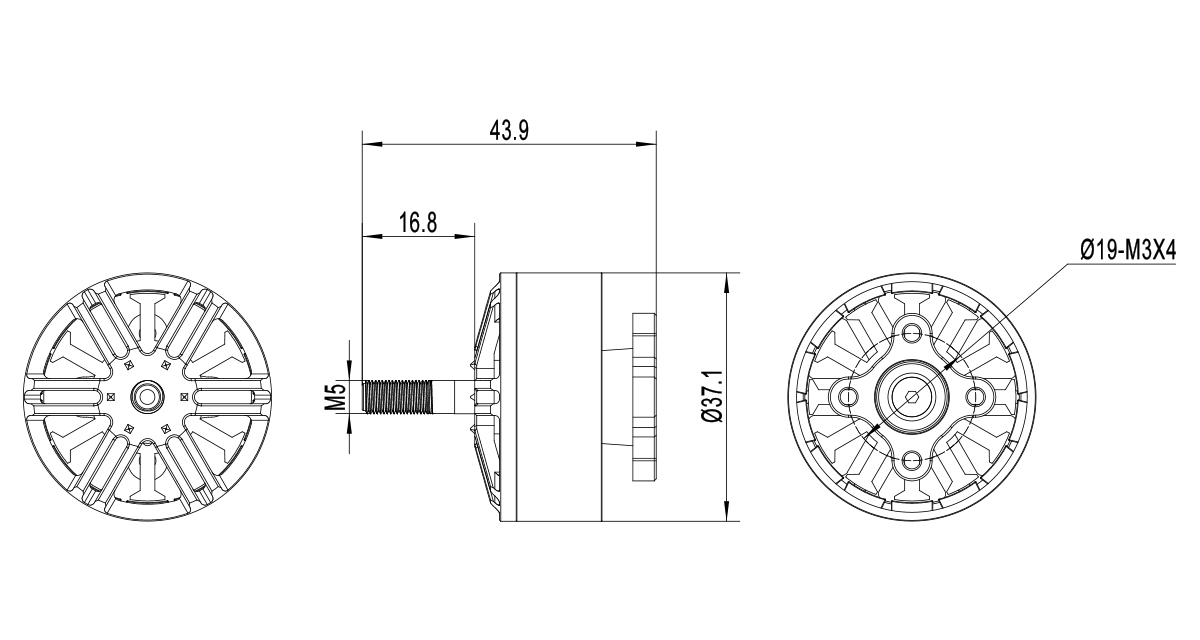

Motor size D:37.1 × 43.9mm
Rotor balance ≤5mg
Propeller mounting M5 nut
Motor mounting D:19 M3×4
Shaft diameter 5mm
Cable 300mm, 18 AWG black silicone wire

Request a Quote

Send the battery, selected propeller, ESC, frame clearance and quantity for a quotation.

Specifications

KV Option 900KV-6S / Rotors + locking shaft screw + O ring + Gaskets
Weight N/A
Product FAQ
What is the BSC 3110 FPV drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 3110 FPV drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 3110 FPV drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $208.35

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 3110 FPV drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 3110 FPV drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 3110 FPV drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.

View all BSC Series - Basic

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
