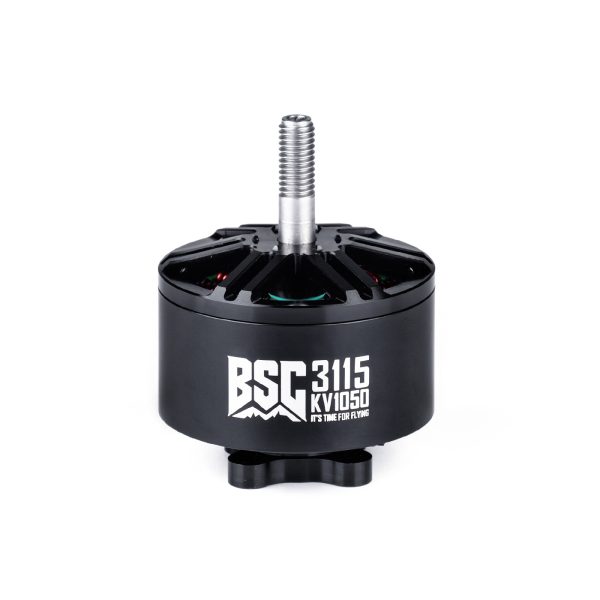

BSC 3115 FPV drone motor

Scroll to switch images

BSC Series - Basic

BSC 3115 FPV drone motor

5.0 · 2 reviews In stock

SKU: 0101DJ1483

CM motor is optimized for the X8 coaxial twin propeller installation. 1.Two ultra-thin stainless steel dust filters are added inside the stator. 2.The split exhaust blade is added inside the rotor.

Price range: $18.00 through $36.90

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

About BSC3115 Motor.

BSC 3115 FPV Drone Motor is designed for pilots and builders who require a reliable, efficient, and versatile propulsion solution for medium-to-large FPV platforms. Featuring a 3115 stator size, optimized 12N14P electromagnetic design, and precision-balanced construction, it delivers strong torque, smooth power output, and excellent efficiency for demanding aerial applications.

Highlights

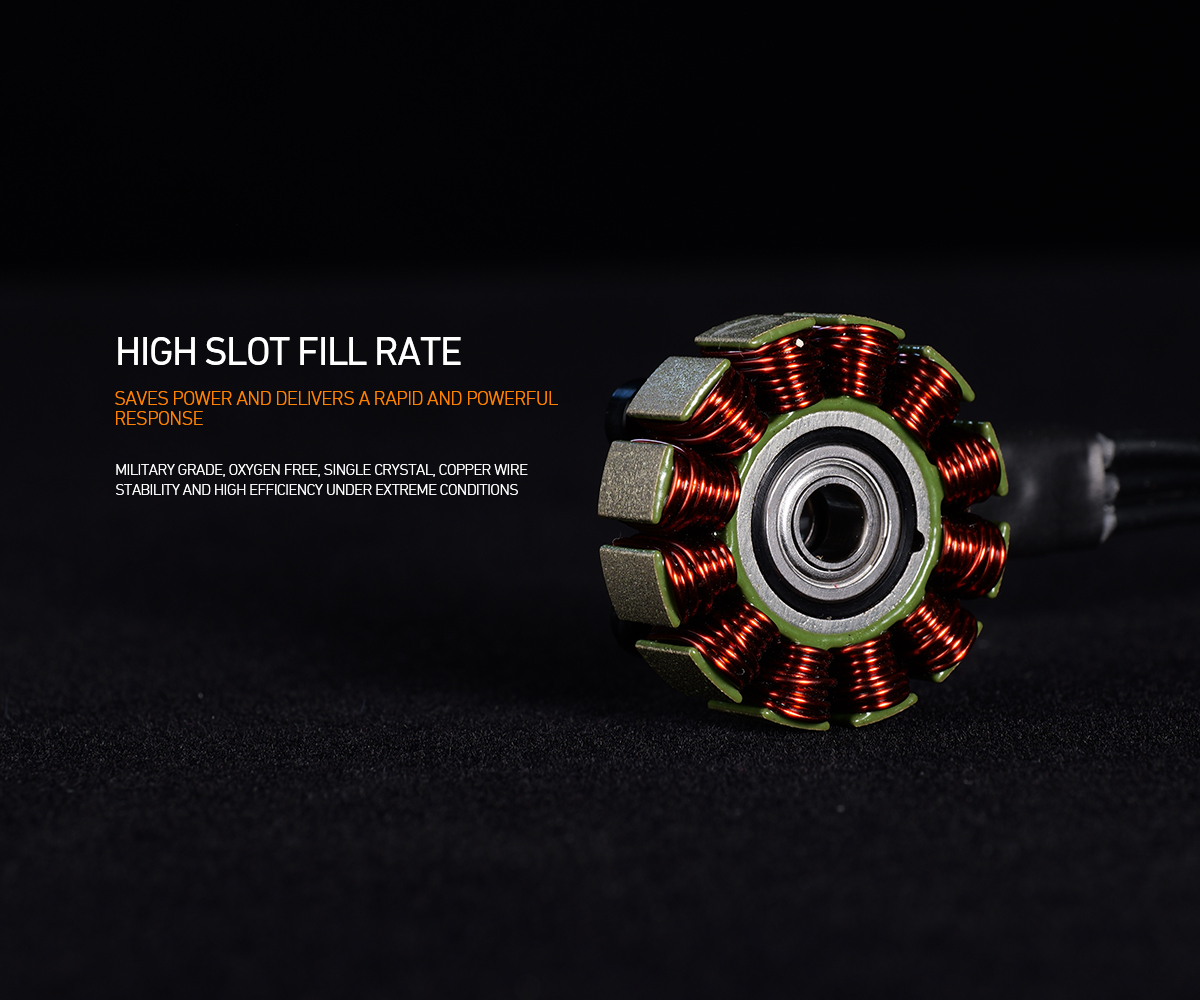

  • Optimized 3115 Stator Design
  • Multiple KV Options for Flexible Applications
  • Smooth & Efficient Power Delivery
  • Designed for Medium & Large FPV Platforms
  • Reliable Construction & Precision Balance

Matching Guide

Propeller: 9x5x3 / 10x5x3

ESC: BL32 12S 70A ESC / BL32 8S 100A

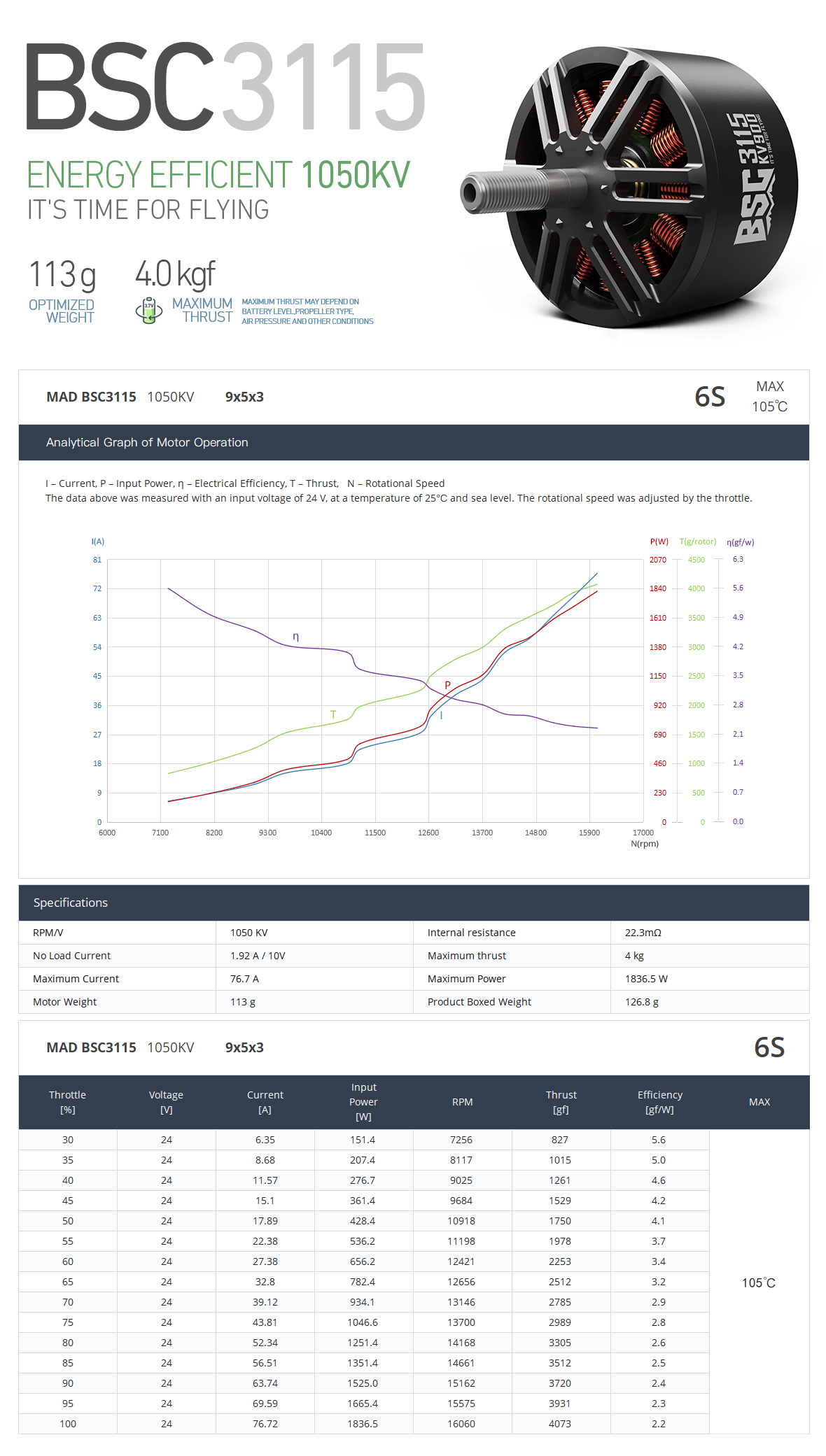

Motor Data
Motor Model MAD BSC3115 V1.0 Motor Number of slots 12N14P

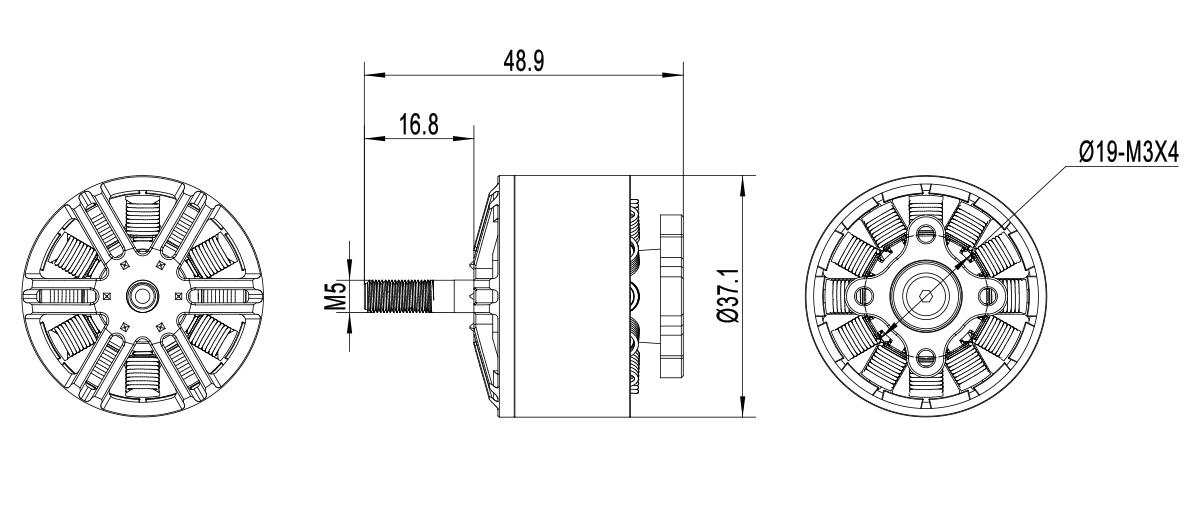

Motor Size D:37.1 × 48.9 mm Rotor Balance ≤5 mg
Propeller Mounting Holes M5 Nut Motor Balance D:19 M3×4
shaft Diameter IN: 5 mm Cable Length 300 mm 18# Awg(Black) silicone

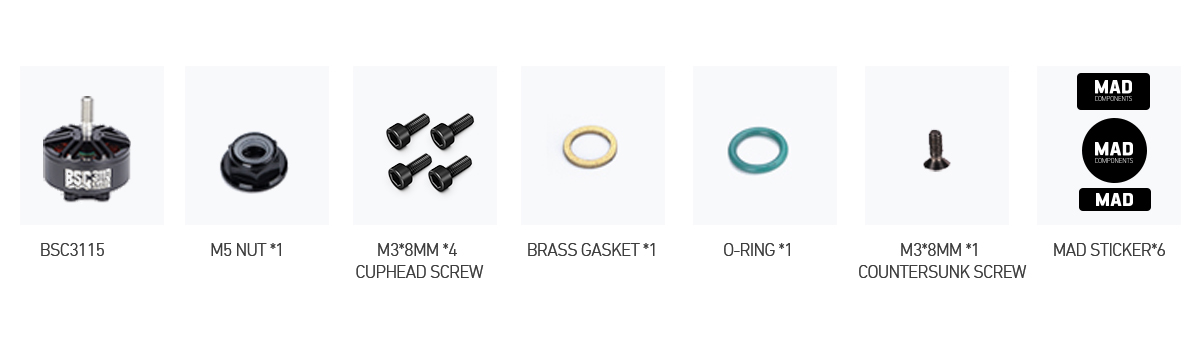

Include

Specifications

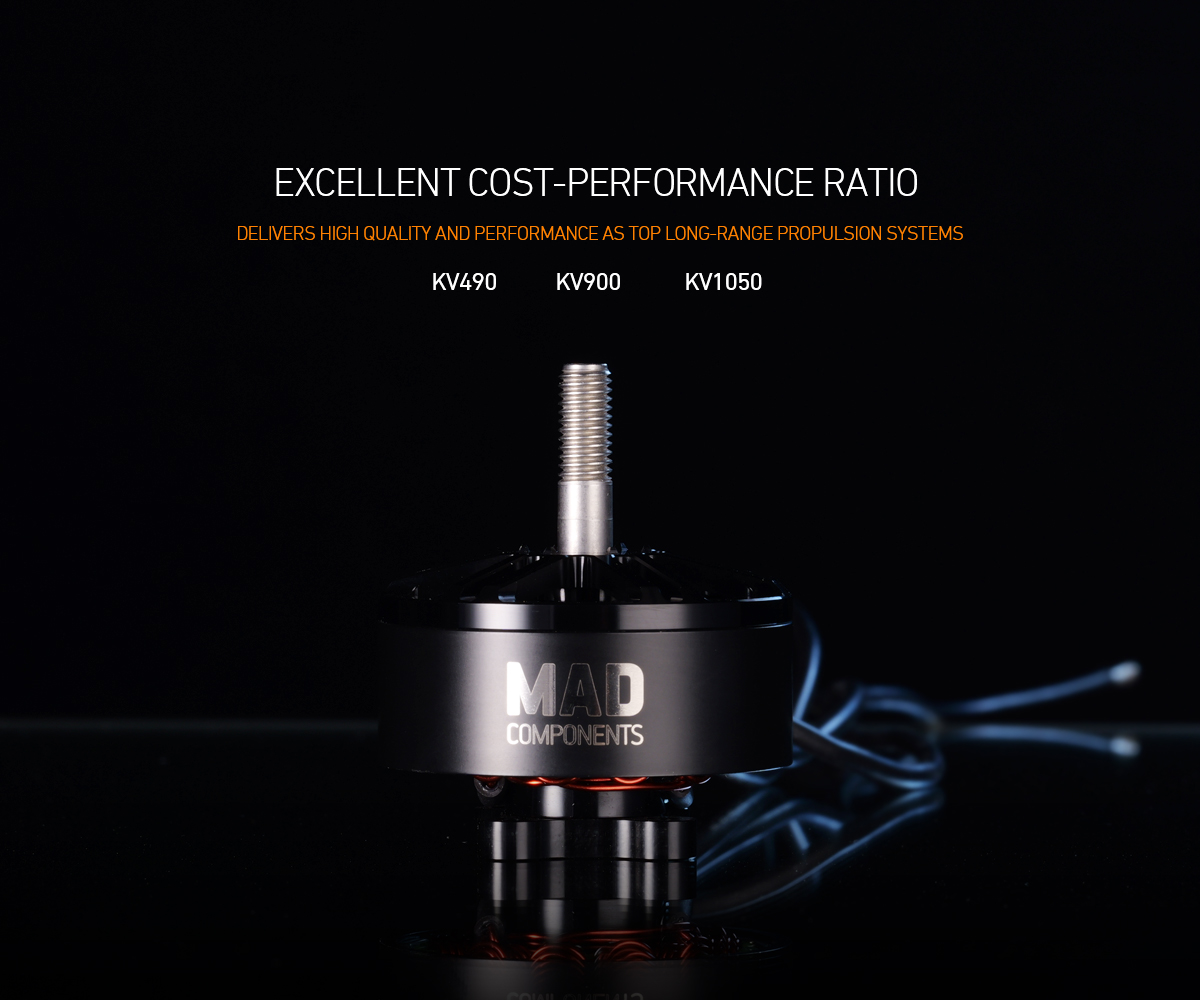

KV Option 490KV-12S / 900KV-6S / 1050KV-6S / Rotors + locking shaft screw + O ring + Gaskets
Weight N/A
Product FAQ
Which platforms is this SKU built for?

It targets industrial and distributor UAV programs that need clear specs, thermal margin, and repeatable production builds. Share duty cycle and AUW so we confirm the fit.

How do I choose the right configuration?

Match KV / config to pack voltage, prop diameter/pitch, and continuous current. Share duty cycle and AUW in the inquiry so we confirm the band before volume pricing.

What is the MOQ and when should I use Inquiry instead of Add to Cart?

Sample buys can use Add to Cart. Volume quote starts from 50 pcs on this SKU. Use Inquiry for dealer pricing, OEM marking, mixed lots, or when lead time and packing still need confirmation.

Can you support OEM marking and matched propulsion sets?

Yes. Logo, label language, wire length, and packing notes can be set early. We also help pair ESC class and prop size so sample and mass-production paths stay aligned.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $190.84

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

Heavy-lift multirotor

Cargo and industrial airframes that run long duty cycles. Pair KV with prop load and continuous current before sample evaluation.

Manned / hybrid platforms

Manned and hybrid propulsion stacks where thermal margin and repeatable production builds matter more than hobby peak thrust.

Cinema & survey fleets

Multi-airframe fleets that restock the same motor family across seasons. Volume inquiry covers dealer pricing and staged ship windows.

OEM private-label programs

Marking, wire length, and packing language for partners that move from evaluation lots into annual forecasts.

View all BSC Series - Basic

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
