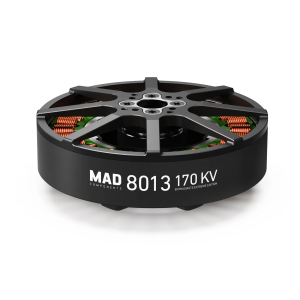

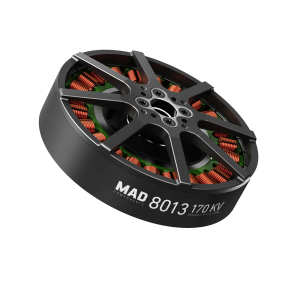

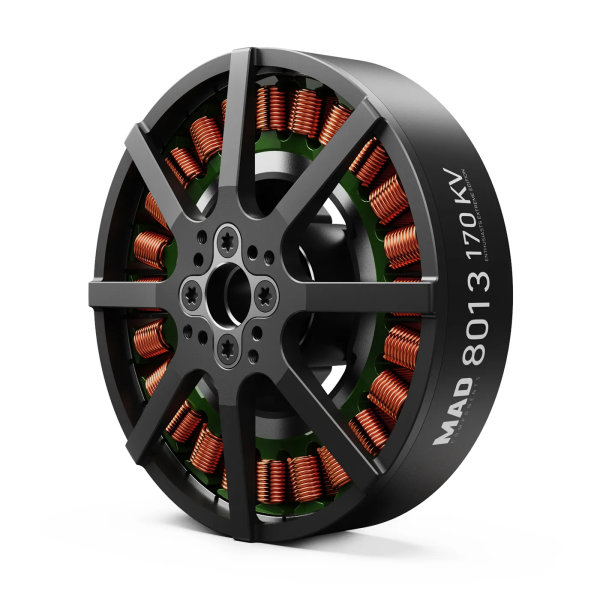

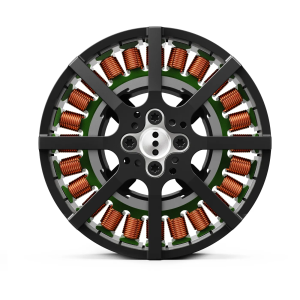

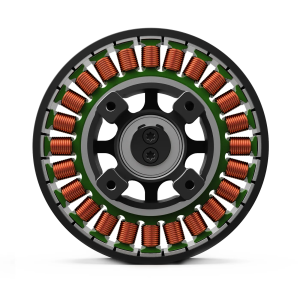

V8013 EEE eVTOL Drone Motor

Scroll to switch images

Drone Motors

V8013 EEE eVTOL Drone Motor

5.0 · 3 reviews In stock

SKU: 0101DJ0969

V8013 motor is the most classical product among VTOL UAV motors. MAD V8013 IPE is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, Archaeology, Remote sensing surveying, Mapping etc. Endurance flight time varies from 30-120mins. Designed for rigorous conditions Over-sized durable bearings for increased life, durabil

$259.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

Motor Data
Motor Model MAD V8013 EEE V1.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C

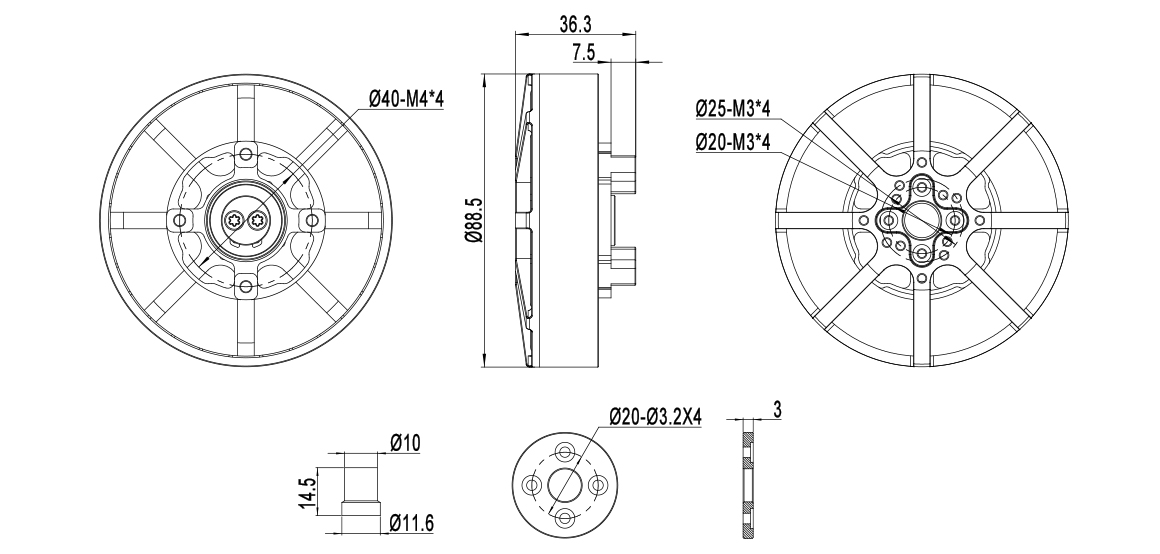

Motor Size D:88.5 × 36.3 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤25 mg
Propeller Mounting Holes D:20 M3×4, D:25 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:40 M4×4
Bearing 6901ZZ*2 Disruptive test 500 V

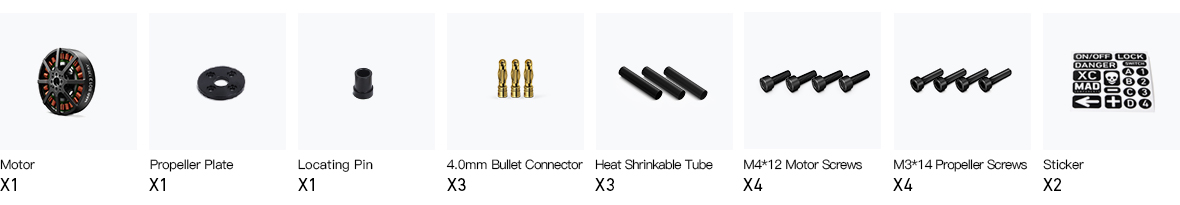

Accessories

VTOL Motor/KV VTOL Prop VTOL ESC
V8013 130KV Fluxer VTOL 26×7.8/27×8.1/28×8.4in MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 rotors)
12S(单节4.3V)/42-52V 4.5kg ~ 6.5kg 22kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
SOLUTION 2
VTOL Motor/KV VTOL Prop VTOL ESC
V8013 150KV Fluxer Vtol 26×7.8in MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 rotors)
12S(单节4.3V)/42-52V 4.5kg ~ 6.5kg 21kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
SOLUTION 3
VTOL Motor/KV VTOL Prop VTOL ESC
V8013 170KV Flxuer Vtol 26×7.8in MAD AMPX 120A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 axes)
12S(单节4.3V)/42-52V 6kg ~ 8kg 28kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.

Specifications

KV OPTION 135KV / 150KV / 170KV
Weight N/A
Product FAQ
Which platforms is this SKU built for?

It targets industrial and distributor UAV programs that need clear specs, thermal margin, and repeatable production builds. Share duty cycle and AUW so we confirm the fit.

How do I choose the right configuration?

Match KV / config to pack voltage, prop diameter/pitch, and continuous current. Share duty cycle and AUW in the inquiry so we confirm the band before volume pricing.

What is the MOQ and when should I use Inquiry instead of Add to Cart?

Sample buys can use Add to Cart. Volume quote starts from 50 pcs on this SKU. Use Inquiry for dealer pricing, OEM marking, mixed lots, or when lead time and packing still need confirmation.

Can you support OEM marking and matched propulsion sets?

Yes. Logo, label language, wire length, and packing notes can be set early. We also help pair ESC class and prop size so sample and mass-production paths stay aligned.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $1,127.40

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

Heavy-lift multirotor

Cargo and industrial airframes that run long duty cycles. Pair KV with prop load and continuous current before sample evaluation.

Manned / hybrid platforms

Manned and hybrid propulsion stacks where thermal margin and repeatable production builds matter more than hobby peak thrust.

Cinema & survey fleets

Multi-airframe fleets that restock the same motor family across seasons. Volume inquiry covers dealer pricing and staged ship windows.

OEM private-label programs

Marking, wire length, and packing language for partners that move from evaluation lots into annual forecasts.
