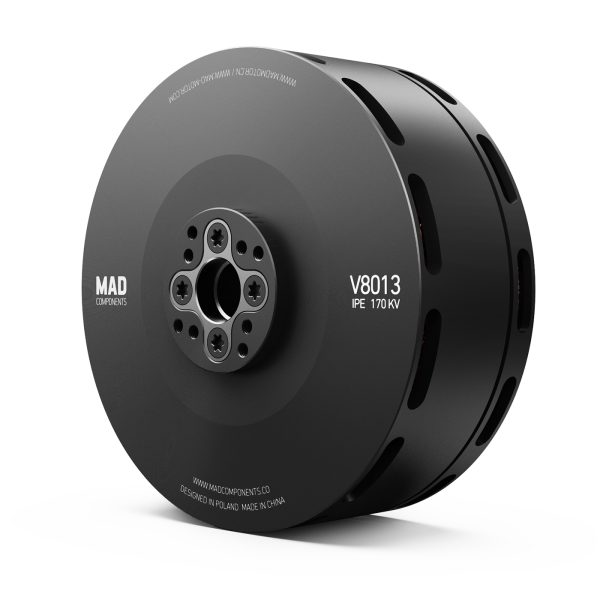

About V8013 IPE eVTOL Drone Motor
The MAD V8013 IPE V1.0 is an eVTOL motor listed with 135KV, 150KV and 170KV options. The official data references 12S operation at 42-52V, 28-inch carbon propellers and different propeller, ESC and takeoff-weight configurations.
Key Features
- 135KV, 150KV and 170KV options.
- D88.5 × 41.65mm motor size.
- IP35 protection.
- 150mm 14# AWG black silicone cable.
- 12mm shaft and multiple mounting patterns.
- 6901ZZ ×2 bearing configuration.
Technical Specifications
| Motor model | MAD V8013 IPE V1.0 |
|---|---|
| KV options | 135KV / 150KV / 170KV |
| Number of pole pairs | 14 |
| Stator | Anticorrosive |
| Varnished wire degree | 150°C |
| Motor size | D88.5 × 41.65mm |
| Degree of protection | IP35 |
| Cable length | 150mm 14# AWG black silicone cable |
| Rotor balance | ≤25mg |
| Motor balance | ≤10mg |

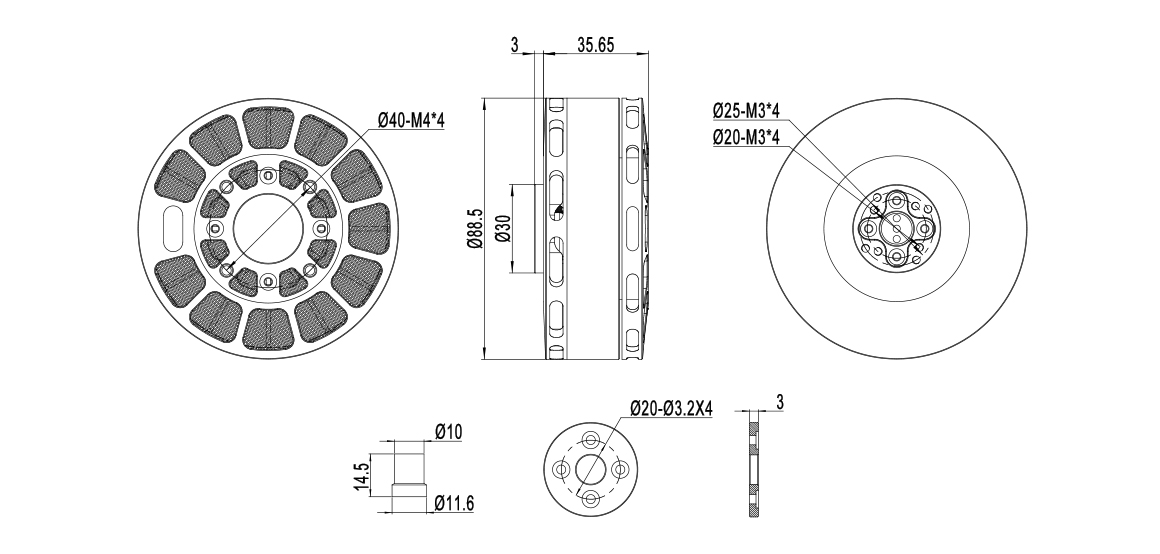

| Propeller mounting holes | D20 M3×4; D25 M3×4 |
| Motor mounting holes | D40 M4×4 |
| Shaft diameter | IN: 12mm |
| Bearing | 6901ZZ ×2 |
| Disruptive test | 500V |
| Reference payload | 4.5-6.5kg per rotor |
| Reference maximum thrust | Up to 14.5kg per rotor |
| Reference motor weight | 1910g |
Performance and Applications
The official information positions this motor for endurance eVTOL and aerial UAV applications. The listed solution references use 28-inch carbon propellers, 12S batteries at 42-52V, and 4.5-6.5kg thrust per rotor for the 135KV/150KV configurations; the 170KV reference lists 6-8kg thrust per motor.
Compatibility Guide
Match the selected KV with the 12S battery, propeller, ESC current range and airframe mounting. Official references list Fluxer VTOL 26×7.8, 27×8.1 or 28×8.4 propellers and MAD AMPX 80A or 120A (5-14S) ESCs depending on the configuration.
FAQ
Which KV options are listed?
The product lists 135KV, 150KV and 170KV options.
What voltage reference is provided?
The official solution lists 12S at 42-52V.
Which mounting details should be checked?
Confirm the D20 M3×4 or D25 M3×4 propeller mounting pattern, D40 M4×4 motor mounting holes and 12mm shaft before ordering.
Request a Quote
Send the selected KV, propeller, battery, ESC, aircraft configuration and quantity for procurement review.
