FPV electronics
SKU: 0102DT0518

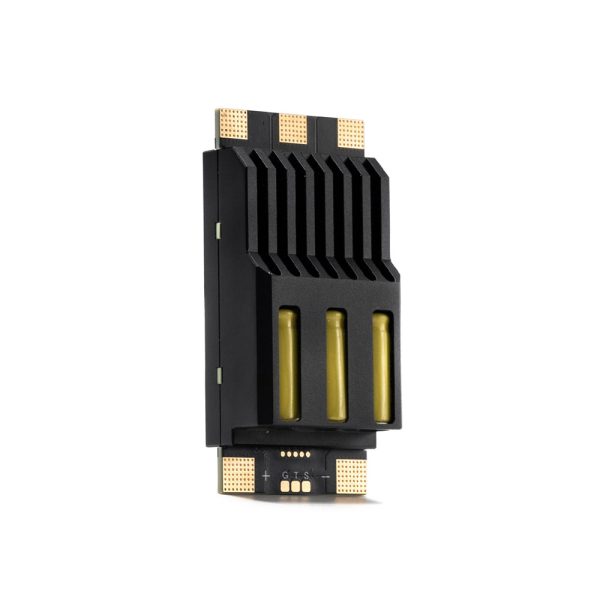

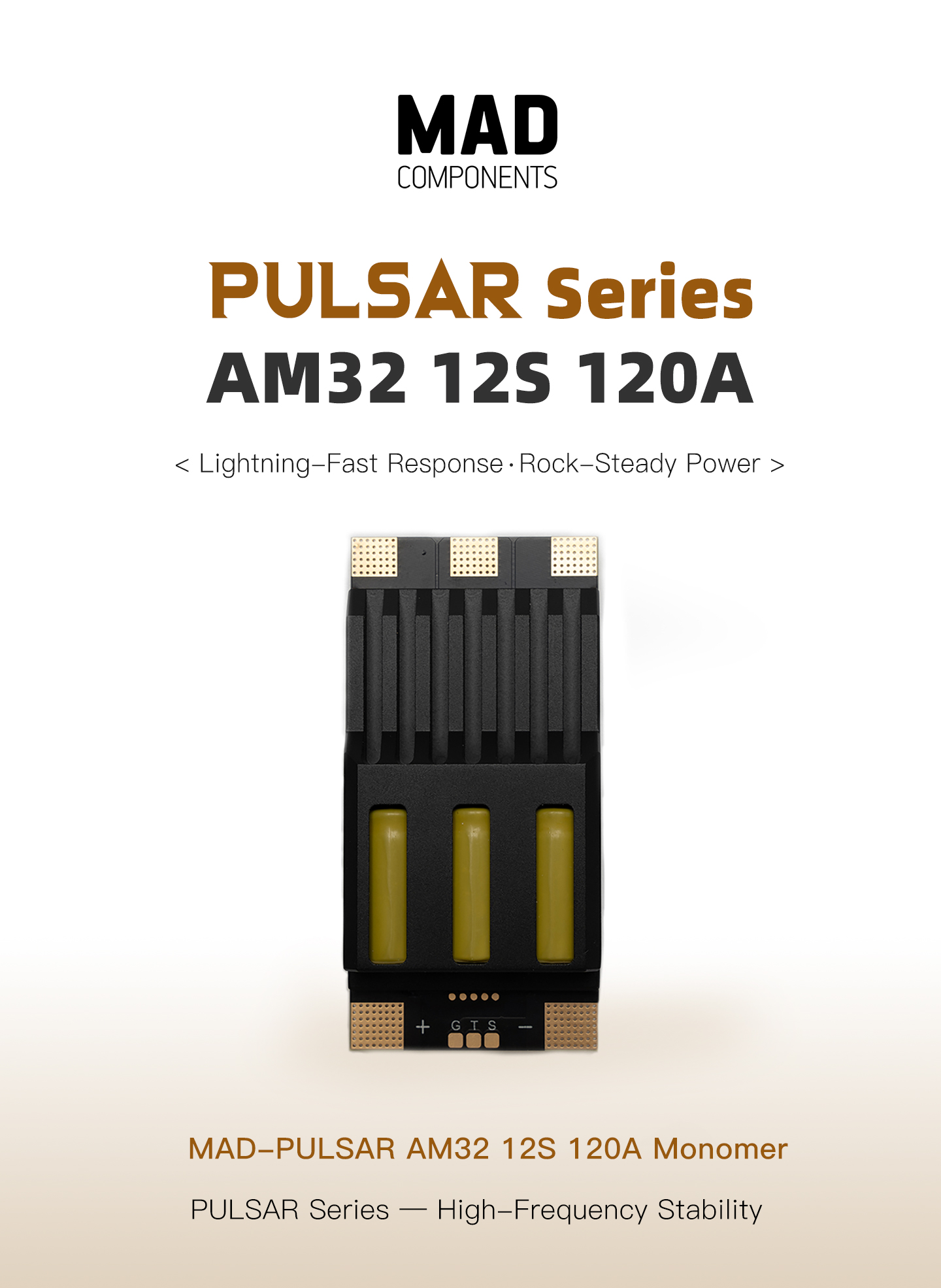

MAD PULSAR AM32 12S 120A Single for matched FPV or UAV electronics integration. Confirm configuration and limits before use.
$99.00
Volume quote from 50 pcs

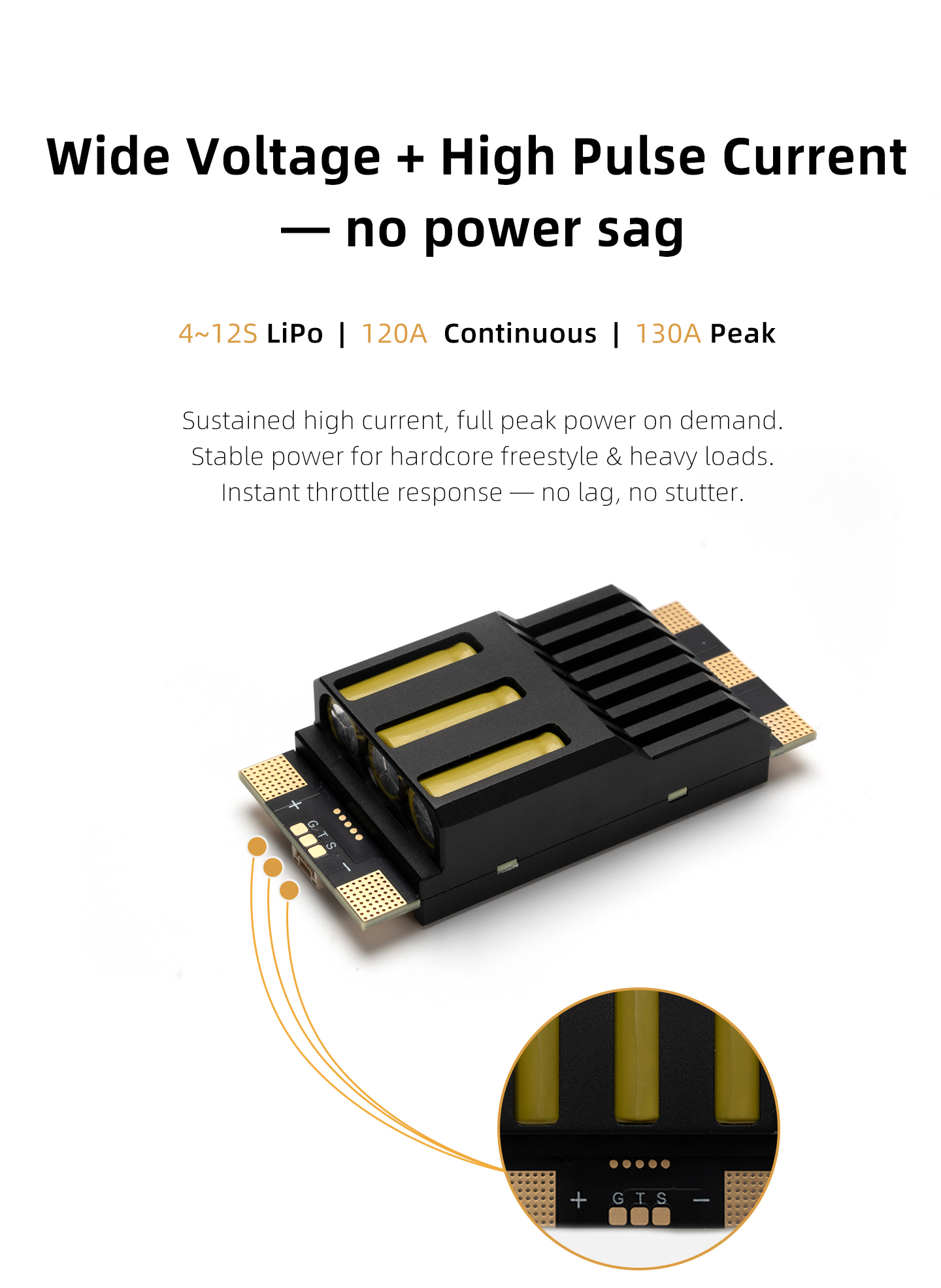

Need OEM marking or custom winding?Single ESC for 4–12S LiPo FPV systems, with 120A continuous and 130A peak current.

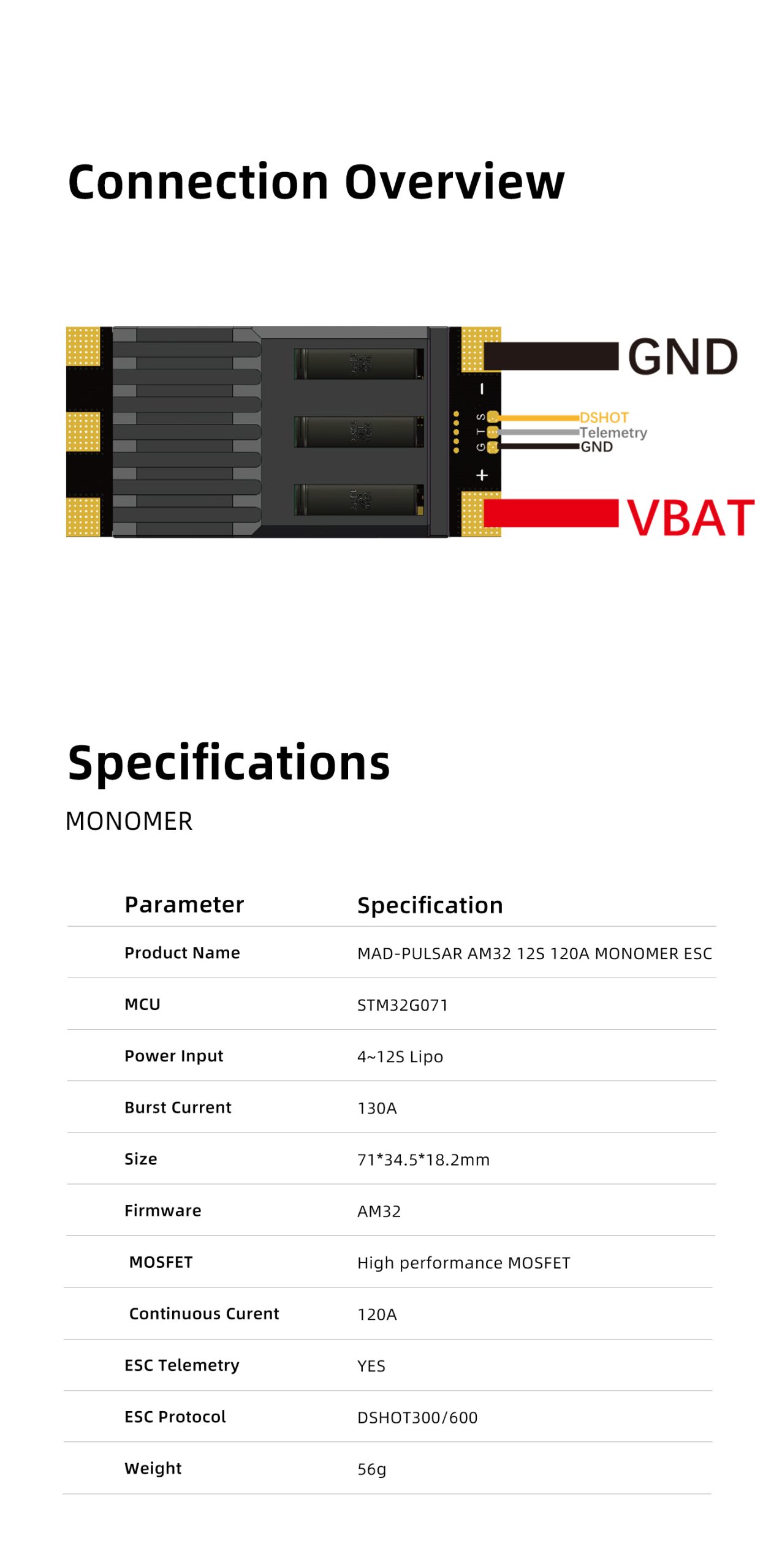

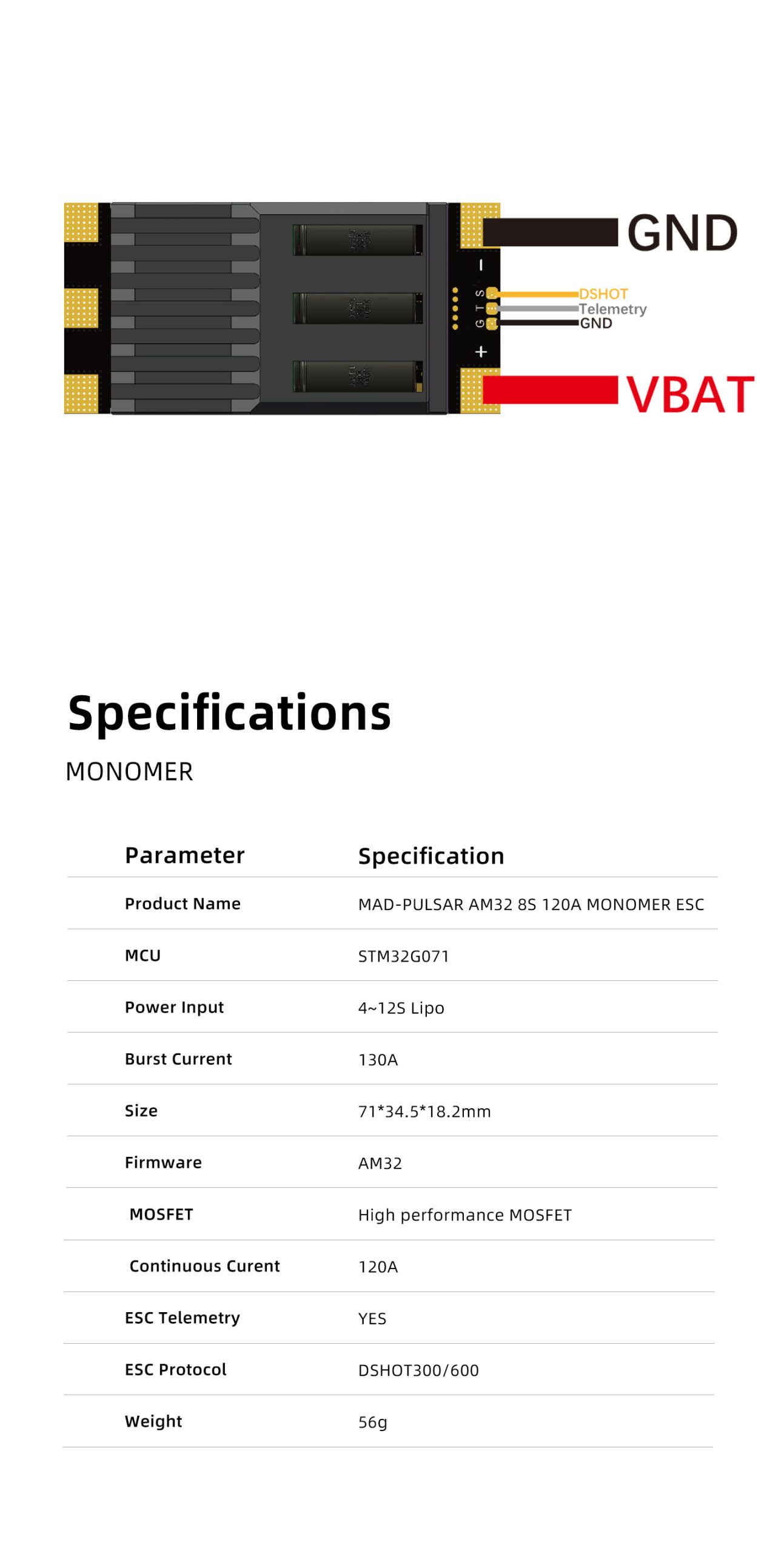

| Model | Pulsar-AM32 12S 120A Single |
|---|---|
| MCU | STM32G071 |
| Firmware | AM32 |
| MOSFET | High-performance MOSFET |
| Input | 4–12S LiPo |
| Continuous current | 120A |
| Peak current | 130A |
| Telemetry | Yes |

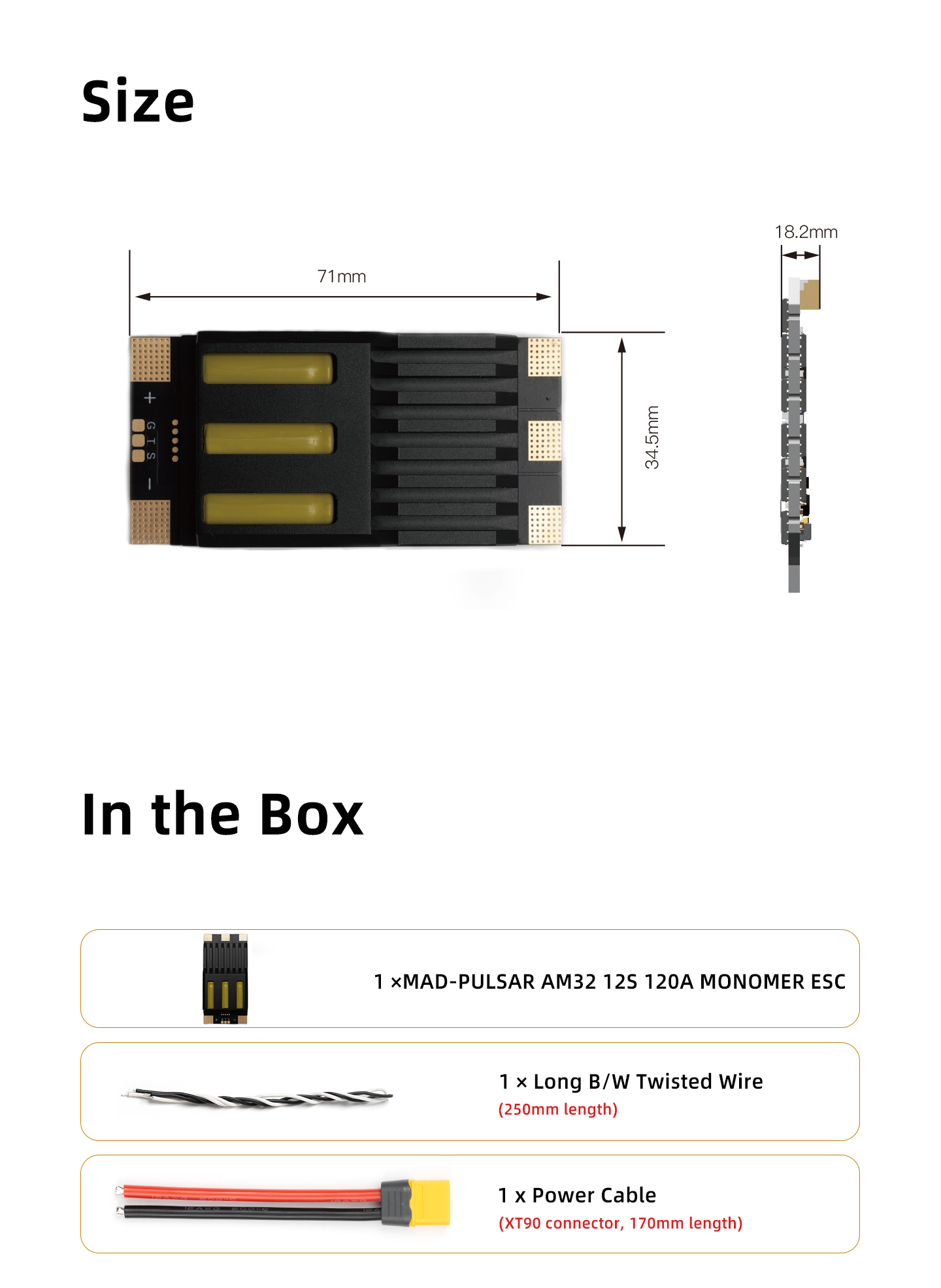

| Dimensions | 71 × 34.5 × 18.2mm |
| Protocol | DSHOT300/600 |
| Weight | 56g |
Send battery cell count, motor, controller, quantity and configuration for quotation.
This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.
Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.
It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.
Pair this item with the accessories buyers usually evaluate in the same quote.
Total $259.80
4 items selected
Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.
Conceptual application for integrating the MAD PULSAR AM32 12S 120A Single into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.
Conceptual application for professional UAV development using the MAD PULSAR AM32 12S 120A Single. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.
Conceptual application for an OEM or fleet evaluation of the MAD PULSAR AM32 12S 120A Single. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
