MAD PULSAR BL-S 8S 80A 4IN1 ESC

Scroll to switch images

FPV electronics

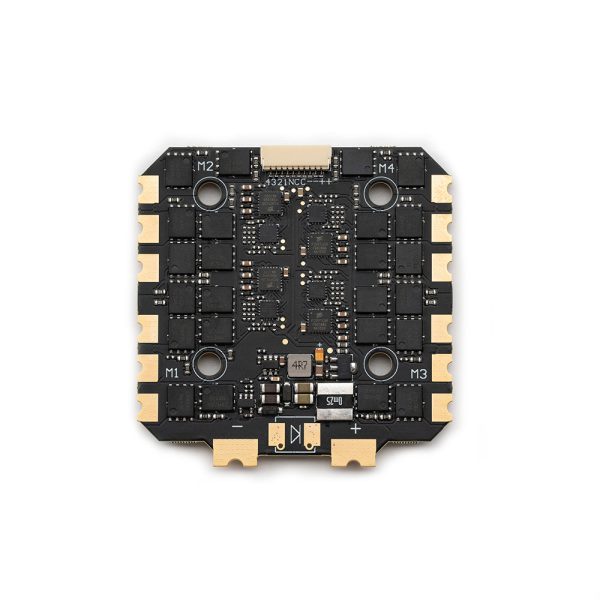

MAD PULSAR BL-S 8S 80A 4IN1 ESC

5.0 · 1 reviews In stock

SKU: 0102DT0510

MAD PULSAR BL-S 8S 80A 4-in-1 ESC for matched propulsion or FPV system integration. Confirm configuration and limits before use.

$95.00

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

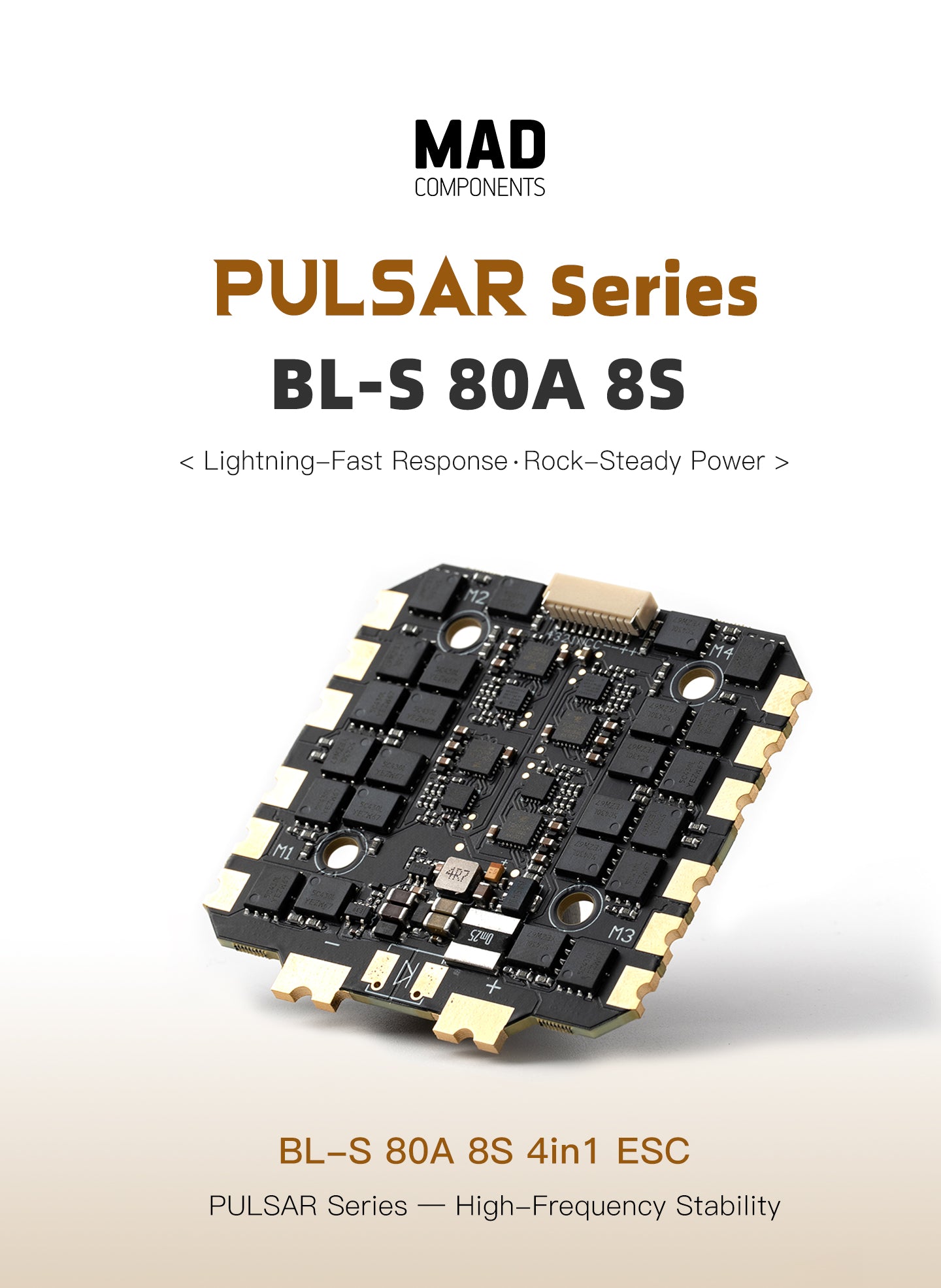

MAD PULSAR BL-S 8S 80A 4-in-1 ESC

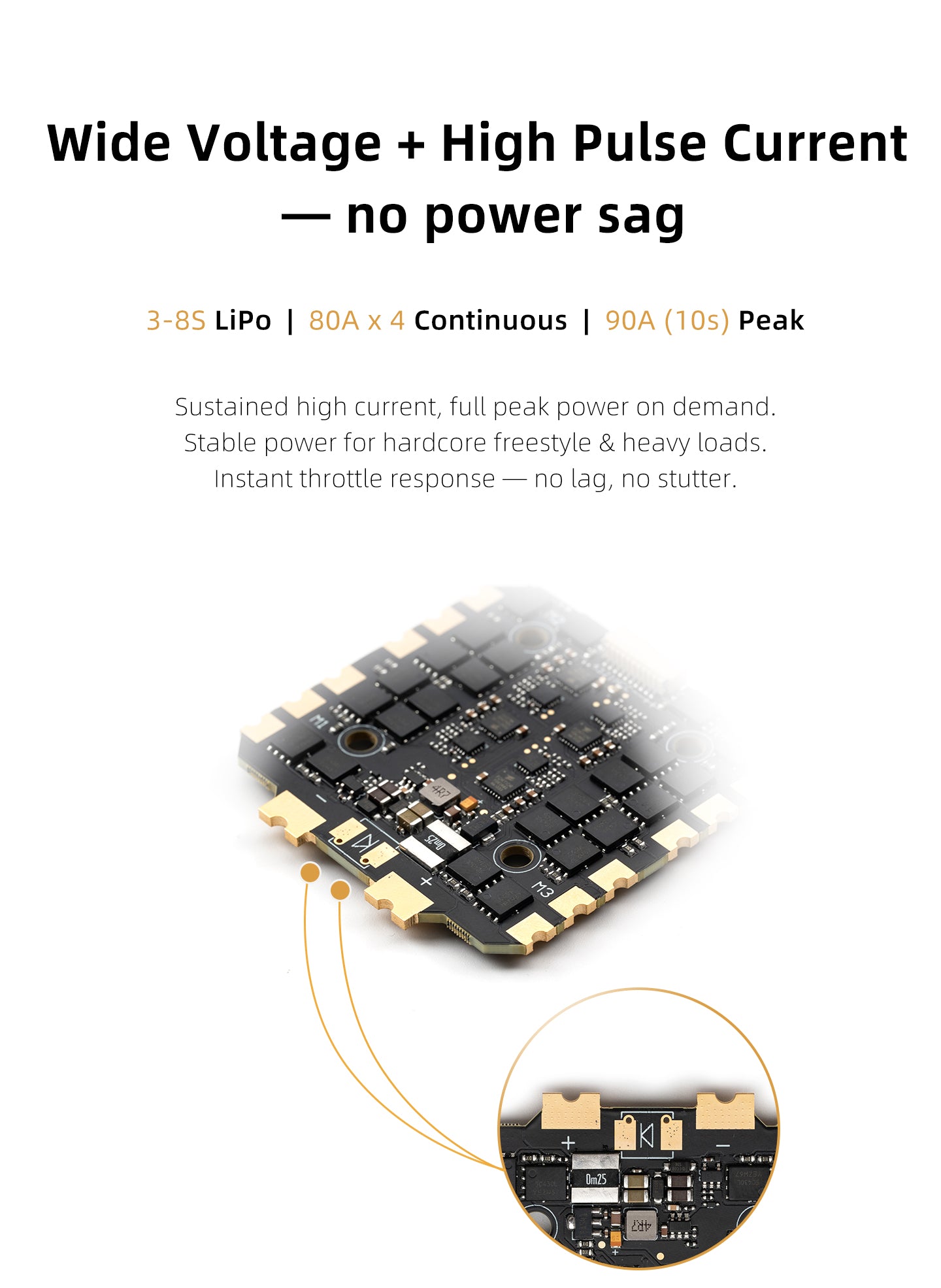

Four-channel ESC for 3–8S LiPo FPV systems, with 80A × 4 continuous and 90A peak current for 10 seconds.

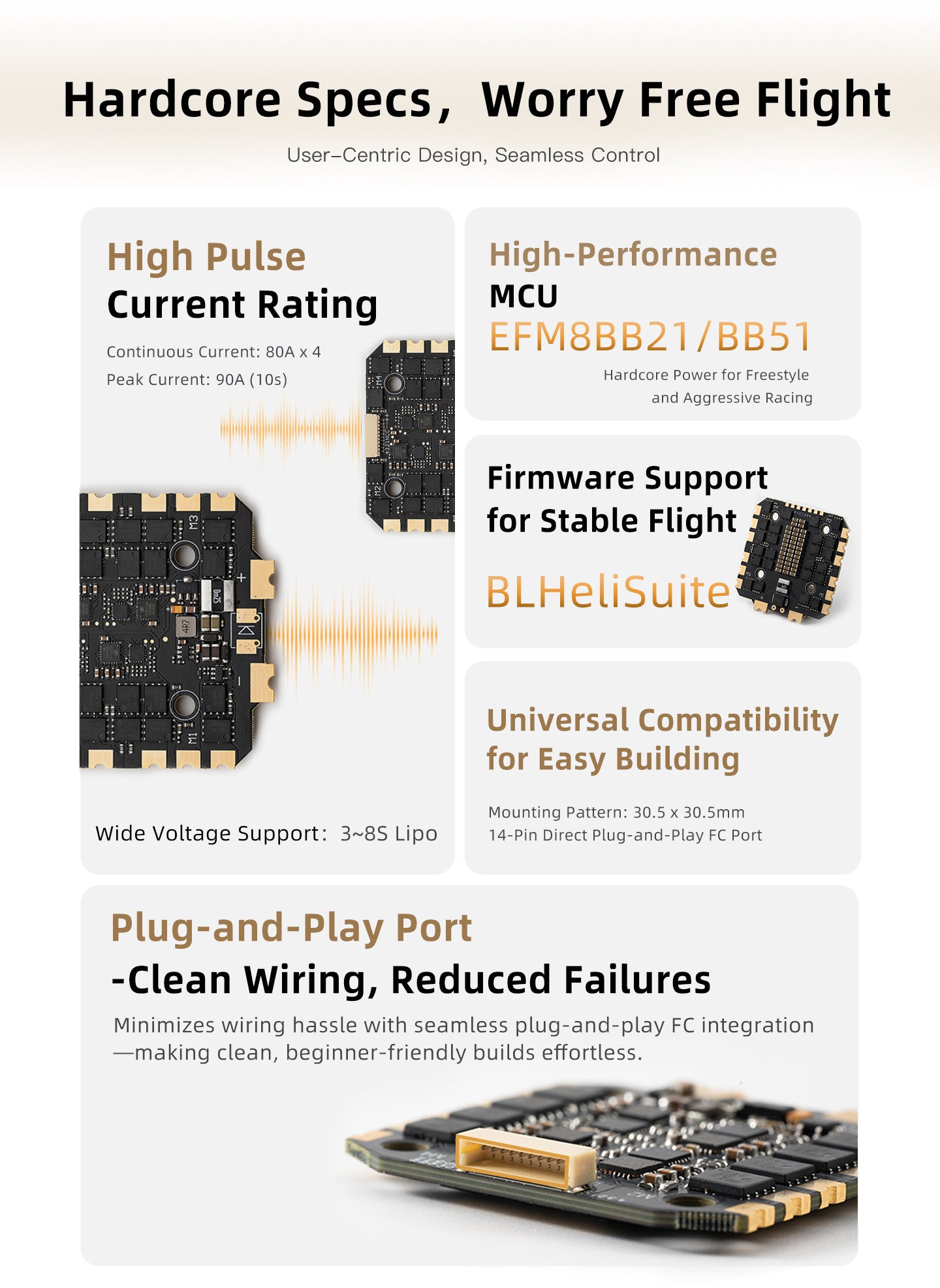

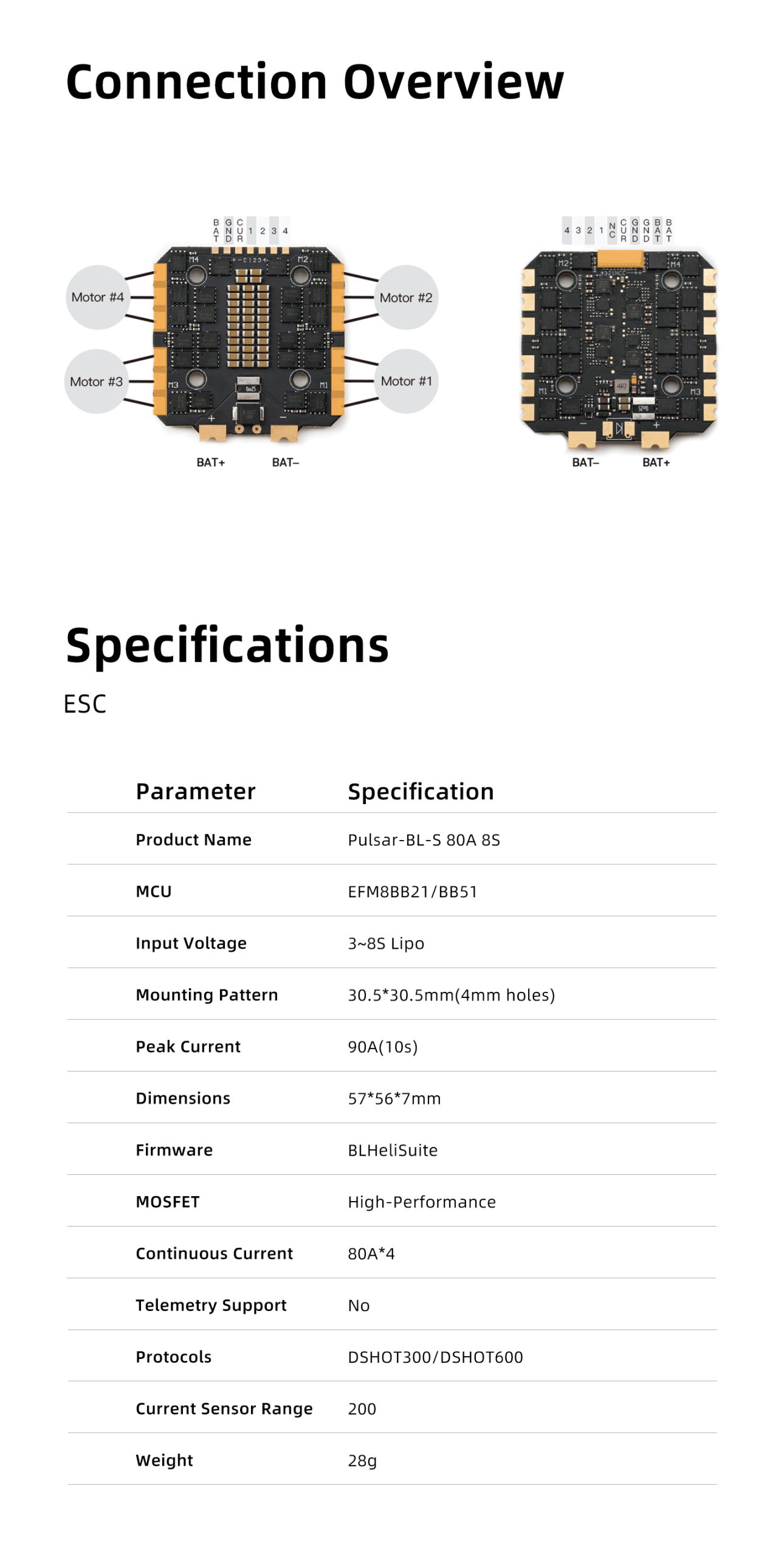

Technical Specifications

Model Pulsar-BL-S 80A 8S

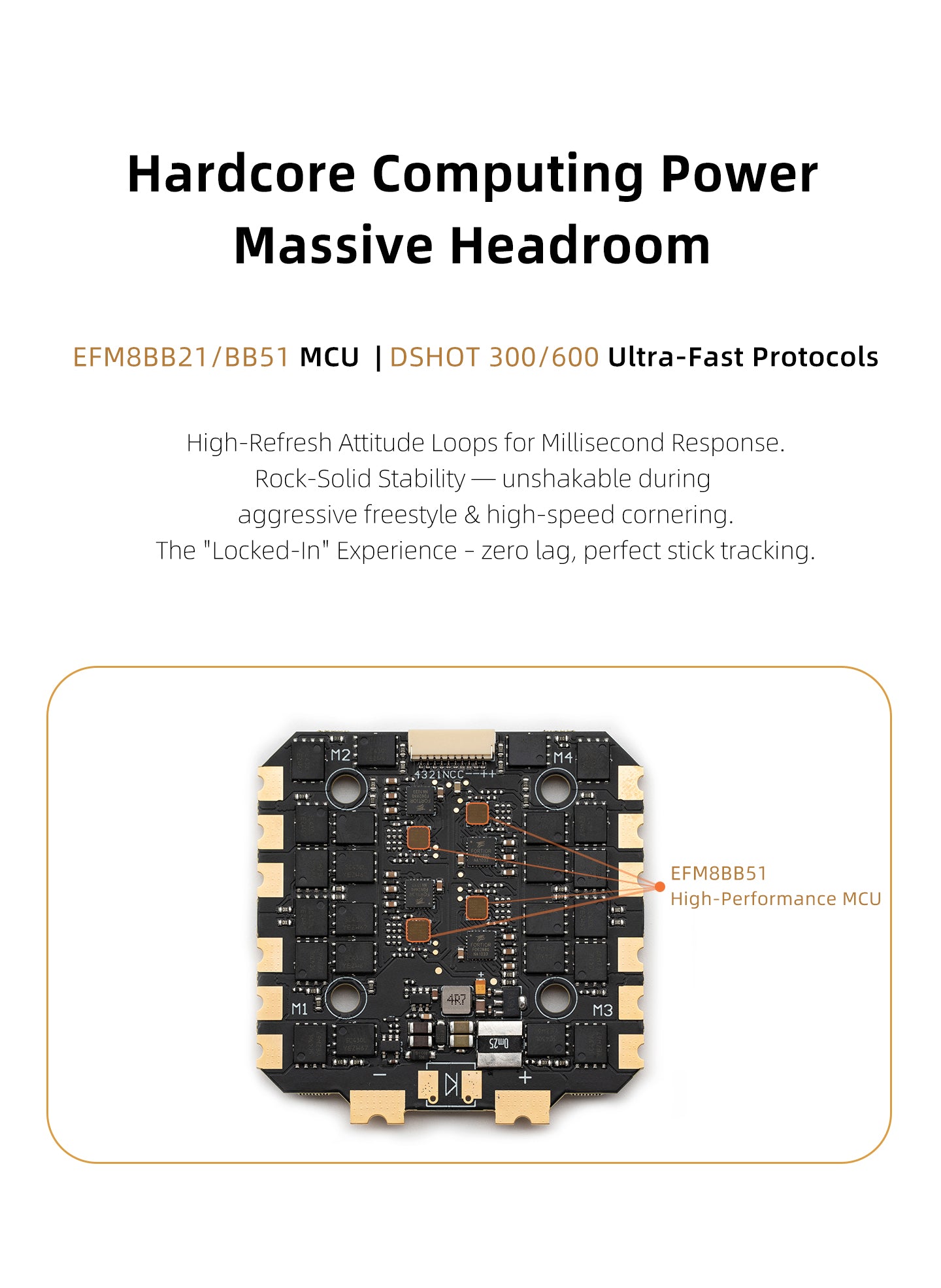

MCU EFM8BB21/BB51
Firmware BLHeliSuite
Input 3–8S LiPo
Continuous current 80A × 4
Peak current 90A for 10 seconds
Telemetry Not supported
Mounting 30.5 × 30.5mm; 4mm holes
Protocol DSHOT300/600
Current sensor range 200
Dimensions 57 × 56 × 7mm
Weight 13.5g

Request a Quote

Send battery cell count, motor, controller, mounting requirement, quantity and configuration for quotation.

Product FAQ
What is the MAD PULSAR BL-S 8S 80A 4IN1 ESC intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the MAD PULSAR BL-S 8S 80A 4IN1 ESC?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the MAD PULSAR BL-S 8S 80A 4IN1 ESC be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $326.50

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the MAD PULSAR BL-S 8S 80A 4IN1 ESC into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the MAD PULSAR BL-S 8S 80A 4IN1 ESC. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the MAD PULSAR BL-S 8S 80A 4IN1 ESC. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.

View all FPV electronics

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.

Top reviews from worldwide buyers

Priya S.
good

Reviewed in India on June 6, 2023

Verified Purchase

Moved a heavy lifter onto MAD PULSAR BL-S 8S 80A 4IN1 ESC. FET temps looked calmer under the same hover load.

Manual is dense, but the PC tool is usable once you learn the layout.
