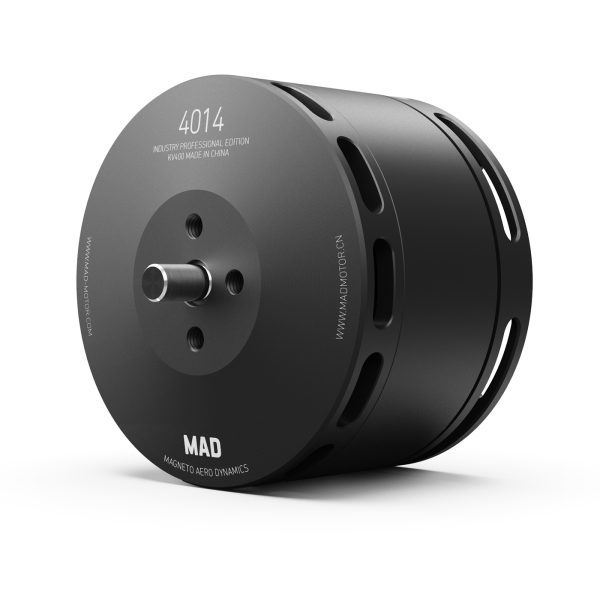

4014 IPE Drone Motor 370KV/400KV

Scroll to switch images

28/35/40 series

4014 IPE Drone Motor 370KV/400KV

4.7 · 3 reviews In stock

SKU: 0101DJ0275

4014 IPE drone motor with 370KV/400KV options for matched UAV propulsion; specify the selected KV version when requesting this model.

Price range: $89.00 through $169.00

KV Option
packing way

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

4014 IPE Drone Motor Overview

The MAD 4014 IPE V1.0 is listed for 950–1,600 g payload per rotor, 15–17 inch carbon-fiber propellers and up to 3,400 g thrust per rotor.

Technical Specifications

KV options 370KV / 400KV

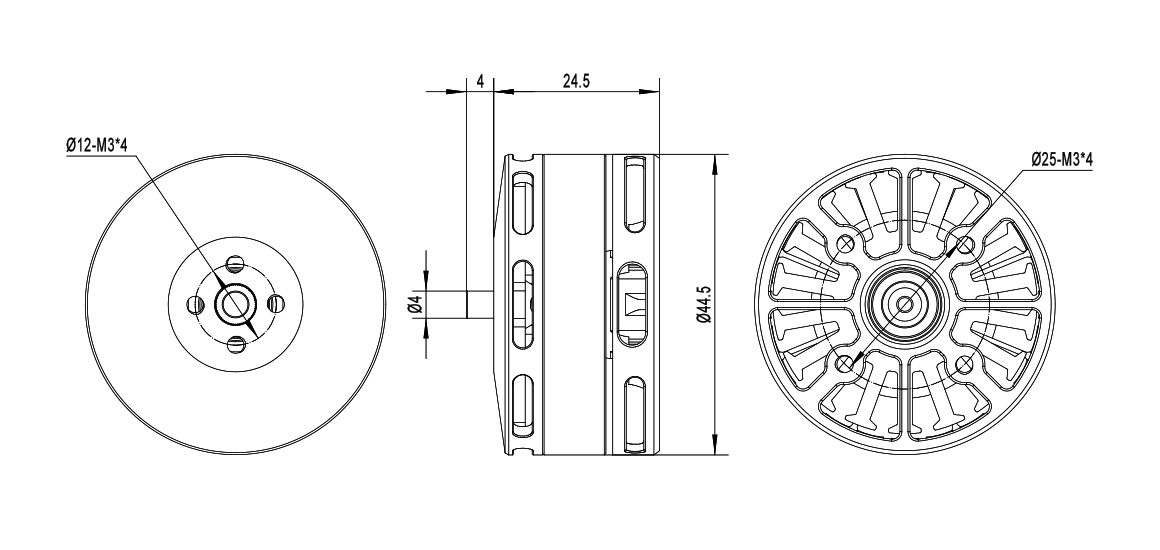

Motor size D44.9 × 39.9 mm
Weight 168 g
Protection IP35
Shaft 4 mm
Motor mounting D25 M3×4; D32 M2.5×3
Propeller mounting D12 M3×4
Maximum thrust 3,400 g per rotor

Selection and Compatibility

Compared with the 4014 EEE listing, this IPE version publishes IP35 protection and 168 g weight. Confirm the selected KV, battery, propeller and ESC before integration.

FAQ

What is the mounting pattern? Motor mounting is D25 M3×4 and D32 M2.5×3; propeller mounting is D12 M3×4.

Request a Quote

Provide KV, battery, propeller, ESC and quantity for a matched quotation.

Specifications

KV Option 370KV / 400KV
packing way 1PC / 2PCS
Weight N/A
Product FAQ
What is the 4014 IPE Drone Motor 370KV/400KV intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the 4014 IPE Drone Motor 370KV/400KV?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the 4014 IPE Drone Motor 370KV/400KV be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $1,395.30

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the 4014 IPE Drone Motor 370KV/400KV into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the 4014 IPE Drone Motor 370KV/400KV. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the 4014 IPE Drone Motor 370KV/400KV. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
