Product detail
Scroll to switch images
Airplane
SKU: 0101DJ1566

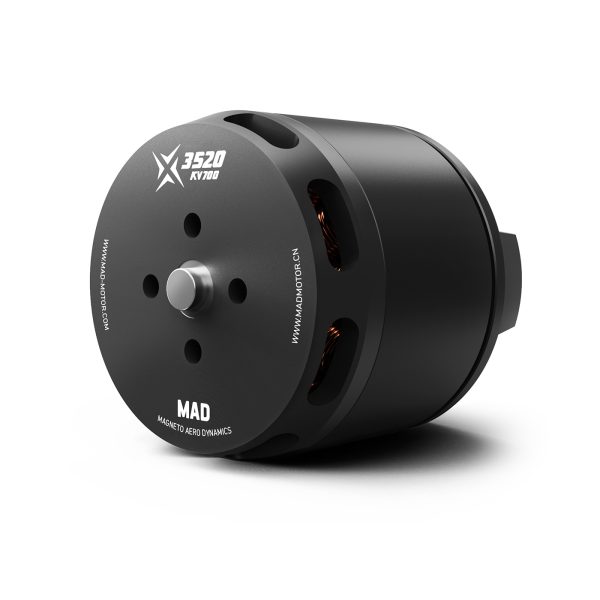

X3520 eVTOL airplane drone motor for matched fixed-wing propulsion; confirm the X3520 model, mounting and compatible power system when ordering.
$75.00

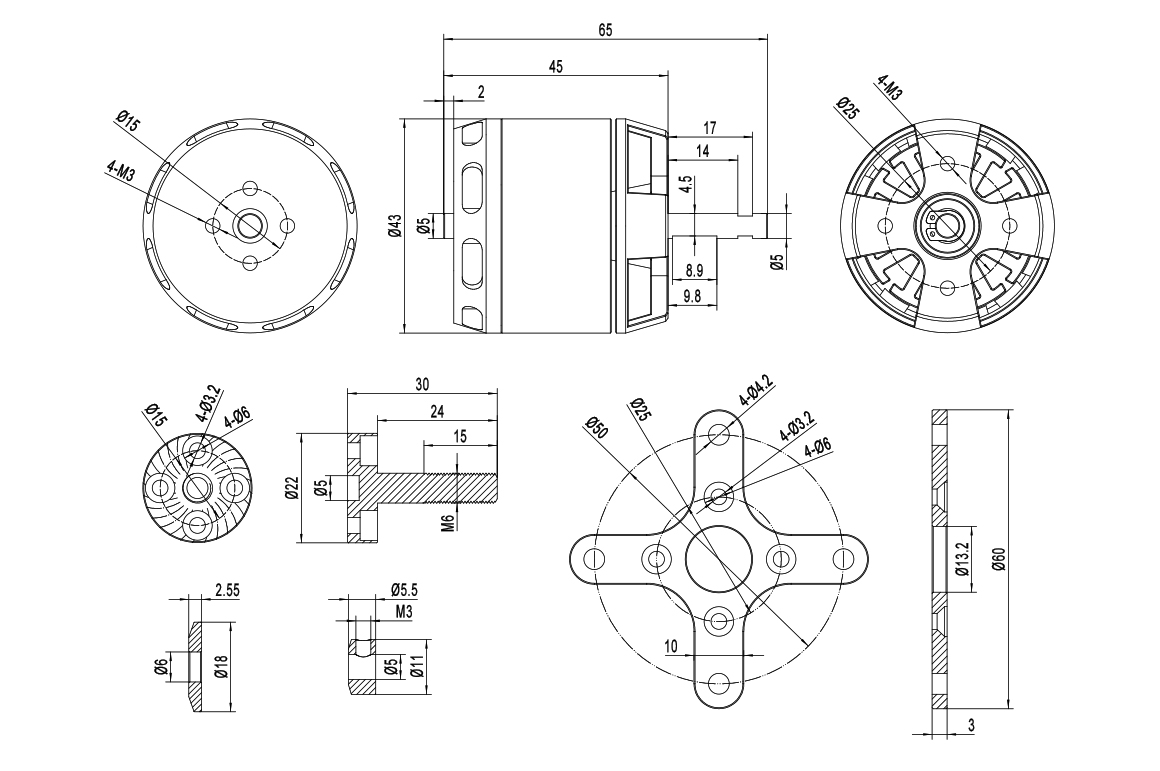

The MAD X3520 IPE V1.0 is listed with a D43 × 65 mm body, IP35 protection and D15 M3×4 / M6 nut propeller mounting.
| Motor size | D43 × 65 mm |
|---|---|
| Protection | IP35 |
| Propeller mounting | D15 M3×4 / M6 nut |
Confirm propeller interface, battery, controller and eVTOL frame clearance before ordering.
Provide aircraft, propeller, battery, controller and quantity.
| KV OPTION | 520kv / 700kv |
|---|---|
| Weight | N/A |
This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.
Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.
It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.
Pair this item with the accessories buyers usually evaluate in the same quote.
Total $4,439.50
4 items selected
Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.
Conceptual application for integrating the X3520 eVTOL Airplane Drone Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.
Conceptual application for professional UAV development using the X3520 eVTOL Airplane Drone Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.
Conceptual application for an OEM or fleet evaluation of the X3520 eVTOL Airplane Drone Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
Product review
Reviews are limited to customers who purchased this product. Sign in with the account used for your order.
Verified Purchase
Not flashy — numbers close to the chart. That is what we wanted for a workhorse motor.
