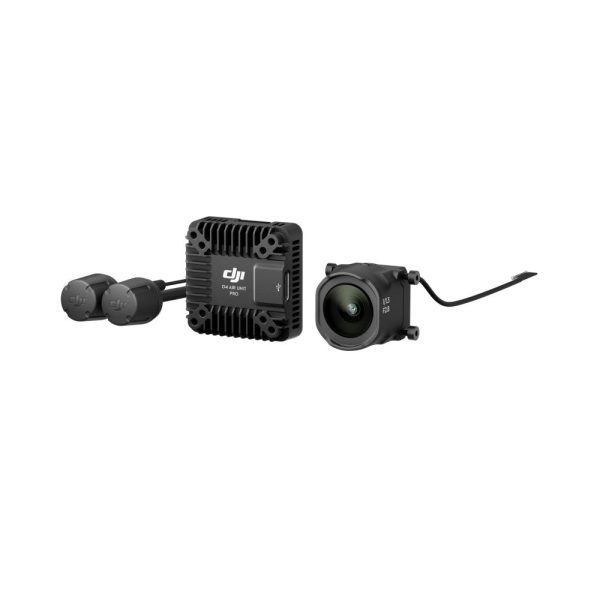

DJI O4 Air Unit Pro for matched UAV or FPV installation
DJI O4 Air Unit Pro is identified by its listed model and component class. Confirm the exact configuration, interface, rotation, mounting pattern and included parts before ordering.
Match this component to the complete system, including battery, motor, propeller, ESC, wiring, cooling, mounting and firmware where applicable. Do not infer missing current duration, load rating, thrust, RPM, weight, certification or endurance from the product name or images.
This product is not a universal replacement. Verify polarity, cell count, mechanical fit, fastener size and operating limits before commissioning, then perform restrained testing.
For related selection, review the AM110 power-system kit, the VC propeller range, and browse the propeller category.
DJI O4 Air Unit Pro FAQ
What should be confirmed before ordering?
Confirm the exact model, interface, rotation, included parts and current documentation.
Can compatibility be inferred from appearance?
No. Verify the item against the specific aircraft, motor, battery and controller.
Does the listing establish a performance rating?
Only manufacturer-confirmed specifications should be used; do not infer missing ratings from images.
The DJI O4 Air Unit Pro is the flagship upgrade in DJI’s digital FPV transmission series, designed for pilots and creators who want top-tier cinematic quality, ultra-low latency, and maximum range in a compact package.
Superior Imaging Power
Equipped with a large 1/1.3-inch CMOS sensor, it captures professional-grade 4K/120fps onboard recordings with smooth high-frame-rate detail — no external action camera required for stunning footage straight from your FPV drone.
Ultra-Wide Cinematic Perspective
The 155° ultra-wide FOV (≈12 mm equivalent focal length) delivers dramatic, immersive views, perfect for carving tight lines, freestyle acrobatics, or sweeping long-range cinematic shots.
Next-Level O4 Transmission Performance
Powered by the advanced O4 digital system, enjoy crystal-clear 1080p/100fps live view with H.265 encoding for fluid, low-noise imagery. In Racing Mode, latency drops to an incredible 15 ms (with DJI Goggles 3), and it supports up to 8 aircraft racing simultaneously. Under optimal FCC conditions, achieve a maximum transmission range of 15 km, with intelligent auto frequency hopping for rock-solid reliability.
Pro Color & Stabilization Tools
Shoot in 10-bit D-Log M mode to preserve rich dynamic range for flexible color grading in post-production. Built-in RockSteady 3.0 electronic stabilization delivers buttery-smooth footage during aggressive maneuvers (Gyroflow compatible for even finer tuning).
Compact & Build-Friendly Design
Weighing just ≈32 g (including camera module) with a transmission module footprint of 33.5 × 33.5 × 13 mm, it integrates seamlessly into 3-inch+ freestyle and cinewhoop builds. Supports 2–6S power input, dual antennas, and up to 1200 mW output for excellent signal penetration.
Key Highlights
- 1/1.3″ CMOS sensor | 4K/120fps onboard recording
- 155° ultra-wide FOV + 10-bit D-Log M
- 15 ms ultra-low latency in Racing Mode
- 15 km max transmission range (FCC)
- 1080p/100fps H.265 live feed
- RockSteady 3.0 stabilization | 4 GB internal storage + microSD (up to 512 GB)
- Compatible with DJI Goggles 3, Goggles 2, Integra, and various controllers
Whether you’re crafting cinematic FPV masterpieces, dominating races, or pushing long-distance exploration, the DJI O4 Air Unit Pro raises the bar for image quality, responsiveness, and all-around performance in the FPV world. See farther, react quicker, create without limits.
Related FPV spare: 5.8G Antenna Black Bears II 15cm.
